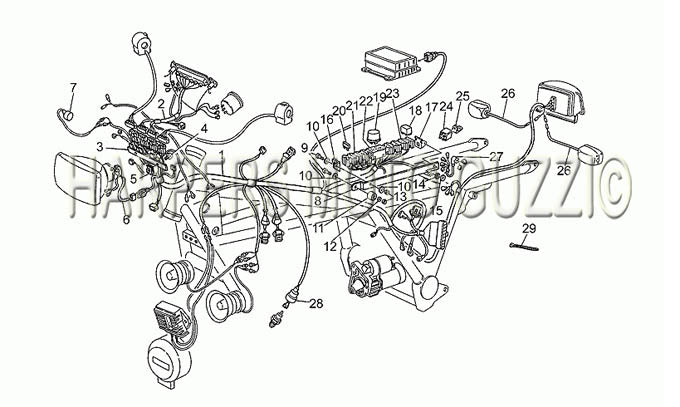

1995 2001 850 T5 Police 850 Electrical System
| Position | Part Number | Description |
|---|---|---|
| 1 | 28747149 | Electrical system (#28747149) |
| 2 | 28747248 | #02 Dashboard cable (#28747248) |
| 3 | 28749747 | #03 Plate (#28749747) |
| 4 | 98326016 | SCREW, PAN HEAD (#98326016) |
| 5 | 28576590 | CLIP A (#28576590) |
| 6 | 14747455 | CABLE ASSY (#14747455) |
| 6 | 28747449 | #06 Headlight wiring w/harness (#28747449) |
| 7 | 28787247 | BEEPER (#28787247) |
| 8 | 28424848 | #08 Support plate (#28424848) |
| 9 | 98622316 | SCREW (#98622316) |
| 10 | 95000206 | WASHER (#95000206) |
| 11 | 14103800 | BUSH (#14103800) |
| 12 | 95100121 | WASHER (#95100121) |
| 13 | 92630206 | NUT (#92630206) |
| 14 | 93110060 | RUBBER WASHER (#93110060) |
| 15 | 95100120 | WASHER (#95100120) use 95105320 |
| 16 | 30477101 | BRACKET RH (#30477101) USE 304771015 |
| 17 | 30477200 | BRACKET LH (#30477200) |
| 18 | ||
| 19 | 17750520 | TURN SIGNAL FLASHER (#17750520) |
| 20 | 28742560 | FUSE 15A (#28742560) use 290860 |
| 21 | 30732200 | FUSE HOLDER (#30732200) |
| 22 | 30756100 | FLASHER HOLDER (#30756100) |
| 23 | 30732400 | RELAY HOLDER (#30732400) |
| 24 | 28732545 | #15 Siren relay SWF (#28732545) |
| 25 | 28732946 | #16 Relais support (#28732946) |
| 26 | 28753145 | #26 Turn ind.harness (#28753145) |
| 27 | 12735100 | CAP (#12735100) |
| 28 | 12717600 | Cap (#12717600) |
| 29 | 14609650 | TIE WRAP (#14609650) |
