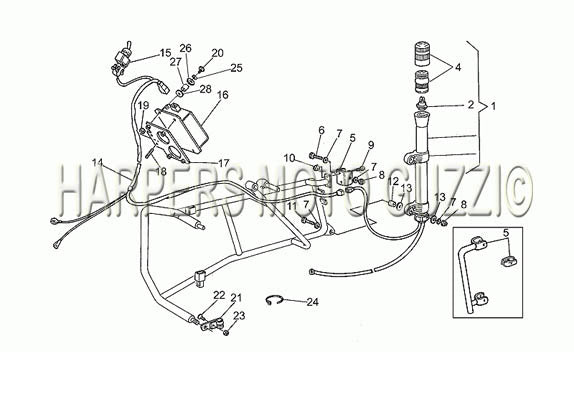

1996 2001 V 75 PA Nuovo Tipo 750 Sound Strobo Lamp
| Position | Part Number | Description |
|---|---|---|
| 1 | 28786225 | #01 Motorized strobo kit SONORA (#28786225) |
| 1 | 28999580 | #01 Manual strobo kit SONORA (#28999580) |
| 2 | 28530526 | #02 Motorized strobo assy. (#28530526) |
| 2 | 28530580 | #02 Manual strobo lamp (#28530580) |
| 4 | 28530529 | #04 Strobo lens (#28530529) |
| 5 | 28785445 | Telescopic arm support (#28785445) |
| 5 | 28785625 | #05 Strobo support (#28785625) |
| 6 | 98052465 | BOLT (#98052465) |
| 7 | 95004208 | WASHER (#95004208) |
| 8 | 92630108 | NUT 8MM (#92630108) |
| 9 | 98622320 | SCREW (#98622320) |
| 10 | 92630106 | NUT USE 92630707 (#92630106) |
| 11 | 98052495 | BOLT (#98052495) |
| 12 | 30429760 | SPACER LH (#30429760) |
| 13 | 95100239 | WASHER (#95100239) |
| 14 | 20726221 | Arm wiring (#20726221) |
| 15 | 20745720 | #07 Switch (#20745720) |
| 16 | 03785980 | Electronic control unit (#03785980) |
| 16 | 28785980 | #08 Electronic control unit SONORA (#28785980) |
| 17 | 20785820 | Control unit support plate (#20785820) |
| 18 | 96508030 | STUD (#96508030) |
| 19 | 92602208 | NUT (#92602208) |
| 20 | 98054320 | BOLT (#98054320) |
| 20 | 98326016 | SCREW, PAN HEAD (#98326016) |
| 21 | 17658360 | CLAMP (#17658360) |
| 22 | 98202516 | SCREWS (#98202516) |
| 23 | 92630205 | LOCK NUT (#92630205) |
| 24 | 14609650 | TIE WRAP (#14609650) |
| 25 | 95100121 | WASHER (#95100121) |
| 26 | 95100118 | WASHER (#95100118) |
| 27 | 91180607 | SPACER (#91180607) |
| 28 | 91551085 | RUBBER BLOCK USE 9155 1086 (#91551085) |
