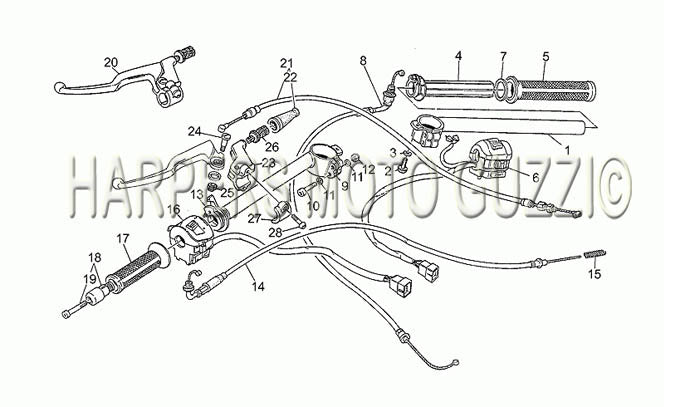

1996 Daytona Racing 1000 Handlebar Controls
| Position | Part Number | Description |
|---|---|---|
| 1 | 30600600 | HANDLEBAR RH DAYTONA 1000, SPORT 1100 (#30600600) |
| 2 | 98230612 | ALLEN SCREW (#98230612) |
| 3 | 14217901 | LOCK WASHER (#14217901) USE AP8152105 |
| 4 | 30603800 | THROTTLE TUBE (#30603800) USE AP8118316 |
| 5 | 30603500 | RH GRIP (#30603500) |
| 6 | 30738800 | RH SWITCH (#30738800) |
| 6 | 30738820 | SWITCH RH USA A (#30738820) |
| 7 | 30606900 | NYLON WASHER (#30606900) |
| 8 | 30117500 | THROTTLE CABLE DAYTONA (#30117500) |
| 9 | 30600700 | HANDLEBAR LH (#30600700) |
| 10 | 98610335 | BOLT (#98610335) |
| 11 | 95001206 | WASHER (#95001206) |
| 12 | 92630206 | NUT (#92630206) |
| 13 | 30135200 | CHOKE LEVER (#30135200) |
| 14 | 30132800 | CHOKE CABLE (#30132800) |
| 15 | 94321073 | SPRING (#94321073) |
| 16 | 30738000 | LH SWITCH A (#30738000) |
| 17 | 30603000 | LH GRIP (#30603000) |
| 18 | 30602700 | VIBRATION DAMPER (#30602700) |
| 20 | 30605500 | CLUTCH LEVER ASSY (#30605500) |
| 21 | 30093000 | CLUTCH CABLE DAYTONA, SPORT 1100 (#30093000) |
| 22 | 23093870 | RUBBER BOOT (#23093870) |
| 23 | 30601800 | LEVER SUPPORT A (#30601800) |
| 24 | 30530528 | PIVOT SCREW A (#30530528) |
| 25 | 92602206 | NUT (#92602206) USE STHN6MM |
| 26 | 30602500 | ADJUSTER ASSY (#30602500)USE AP8118348 |
| 27 | 30601000 | HALF CLAMP (#30601000) |
| 28 | 30530529 | ALLEN BOLT A (#30530529) |
