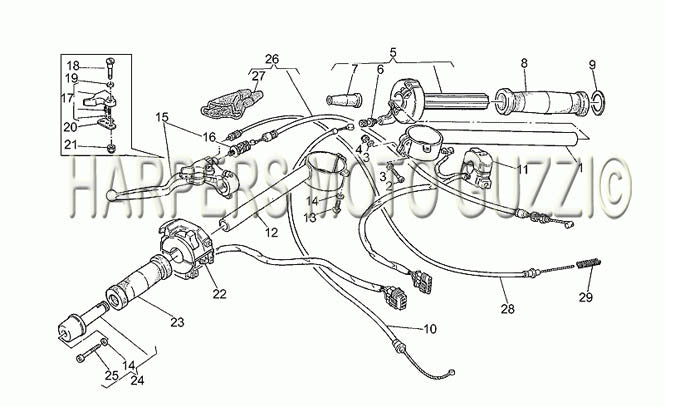

1997 1998 Daytona RS 1000 Handlebar Controls
| Position | Part Number | Description |
|---|---|---|
| 1 | 01600600 | HANDLEBAR RH B (#01600600) |
| 2 | 98610335 | BOLT (#98610335) |
| 3 | 95001206 | WASHER (#95001206) |
| 4 | 92630206 | NUT (#92630206) |
| 5 | 01603400 | THROTTLE ASSY (#01603400) |
| 5 | 01603404 | (#01603404) CAN USE 01603400 |
| 6 | 27603715 | ADJUSTER (#27603715) |
| 7 | 27117615 | BOOT (#27117615) |
| 8 | 27603520 | GRIP RH (#27603520) |
| 9 | 29606970 | WASHER (PAIR) (#29606970) |
| 10 | 01117500 | THROTTLE CABLE (#01117500) 1100 SPORT INJ |
| 10 | 01117504 | (#01117504) USE 01117500 |
| 11 | 01738800 | RH SWITCH (#01738800) |
| 12 | 01600700 | HANDLEBAR LH B (#01600700) |
| 13 | 98230612 | ALLEN SCREW (#98230612) |
| 14 | 14217901 | LOCK WASHER (#14217901) USE AP8152105 |
| 15 | 01605500 | CLUTCH LEVER ASSY (#01605500) |
| 16 | 30602500 | ADJUSTER ASSY (#30602500)USE AP8118348 |
| 17 | 27135215 | CHOKE LEVER (#27135215) Use 00H00902661 |
| 18 | 27604315 | PIVOT SCREW (#27604315) |
| 19 | 27530594 | WASHER (#27530594) |
| 20 | 27530595 | PLATE A (#27530595) |
| 21 | 92630106 | NUT USE 92630707 (#92630106) |
| 22 | 01738000 | LH LITE SWITCH (#01738000) |
| 22 | 01738020 | SWITCH CENTAURO (#01738020) |
| 23 | 27603020 | GRIP LH (#27603020) |
| 24 | 37602705 | BAR WEIGHT ASSY (#37602705) |
| 25 | 98620375 | ALLEN BOLT (#98620375) |
| 26 | 01093000 | CLUTCH CABLE (#01093000) |
| 27 | 27663815 | CABLE BOOT (#27663815) |
| 28 | 01132800 | CHOKE CABLE (#01132800) |
| 29 | 94321073 | SPRING (#94321073) |
