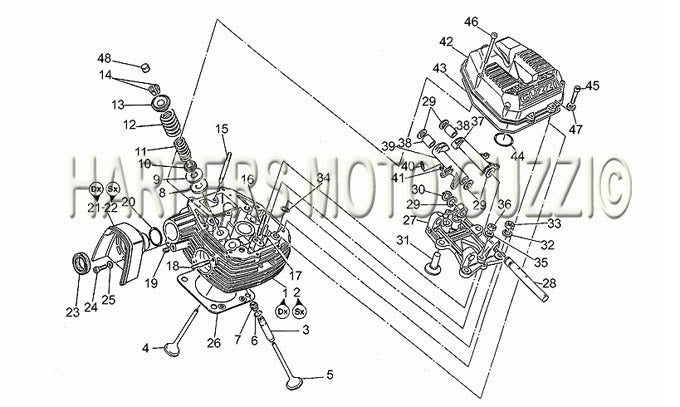

1997 1999 V 10 Centauro 1000 Heads
| Position | Part Number | Description |
|---|---|---|
| 1 | 30022145 | CYL HEAD RH C (#30022145) |
| 2 | 30022245 | CYL HEAD LH C (#30022245) |
| 3 | 30036800 | VALVE GUIDE (#30036800) |
| 4 | 30036000 | INTAKE VALVE (#30036000) |
| 5 | 30036100 | EXHAUST VALVE (#30036100) USE 30036101 |
| 6 | 90353024 | CIRCLIP (#90353024) |
| 7 | 30037800 | VALVE SEAL (#30037800) |
| 8 | 30037201 | SHIM 1MM (#30037201) |
| 9 | 30037202 | SHIM 1.5MM A (#30037202) |
| 10 | 30037001 | SPRING CUP (#30037001) |
| 11 | 30037601 | INNER SPRING (#30037601) |
| 12 | 30037501 | OUTER SPRING (#30037501) |
| 13 | 30038001 | SPRING RETAINER (#30038001) |
| 14 | 30038100 | VALVE KEEPER (#30038100) |
| 15 | 96451450 | STUD LONG A (#96451450) |
| 16 | 96451430 | BOLT (#96451430) |
| 17 | 95512063 | DOWEL A (#95512063) |
| 18 | 96508052 | STUD (#96508052) |
| 19 | 98450513 | PLUG A (#98450513) |
| 20 | 90706331 | O RING (#90706331) |
| 21 | 30002445 | COVER RH GREY (#30002445) |
| 22 | 30002545 | COVER LH GREY (#30002545) |
| 23 | 90412541 | SEAL (#90412541) |
| 24 | 98622320 | SCREW (#98622320) |
| 25 | 95004206 | WASHER (#95004206) |
| 26 | 30022000 | HEAD GSKT (#30022000) |
| 27 | 30034800 | ROCKER SUPPORT B (#30034800) |
| 28 | 30031800 | ROCKER SHAFT (#30031800) |
| 29 | 30032300 | WASHER 1MM (#30032300) |
| 29 | 30032302 | WASHER 1.2MM A (#30032302) |
| 30 | 90271012 | SNAP RING (#90271012) |
| 31 | 30045740 | TAPPET A (#30045740) |
| 32 | 95000210 | WASHER (#95000210) |
| 33 | 92603010 | NUT A (#92603010) |
| 34 | 90706094 | O RING-VITON (#90706094) |
| 35 | 14615901 | WASHER (#14615901) |
| 36 | 92602008 | NUT (#92602008) |
| 37 | 30030200 | ROCKER ARM (#30030200) |
| 38 | 30030801 | BUSHING (#30030801) |
| 39 | 30030400 | ROCKER ARM (#30030400) |
| 40 | 30034000 | ADJUSTING SCREW A (#30034000) |
| 41 | 30034100 | NUT A (#30034100) |
| 42 | 30023546 | VALVE COVER CENTAURO (#30023546) |
| 43 | 30023700 | VALVE COVER O-RING (#30023700) |
| 44 | 90706361 | O RING (#90706361) |
| 45 | 98622325 | BOLT CHROME (#98622325) |
| 46 | 98620350 | ALLEN BOLT (#98620350) |
| 48 | 30045340 | VALVE CAP (#30045340) |
