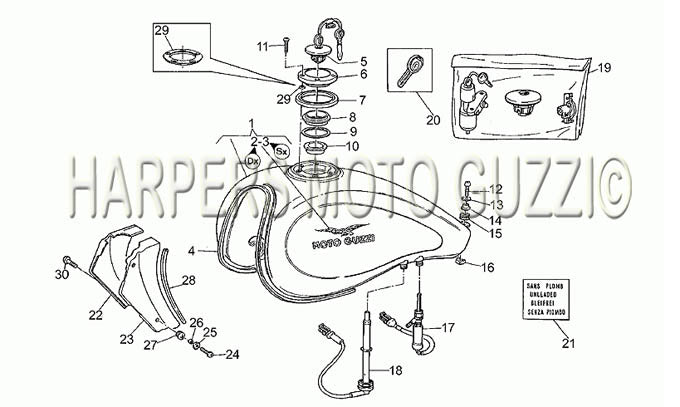

1997 2000 California EV (v11 EV Usa) 1100 Fuel Tank
| Position | Part Number | Description |
|---|---|---|
| 1 | 03100200 | FUEL TANK (#03100200) BARE. USE 03100220 |
| 1 | 03100202 | USE 03100222 (#03100202) |
| 1 | 03100203 | USE 03100223 (#03100203) |
| 1 | 03100204 | USE 03100224 (#03100204) |
| 1 | 03100205 | USE 03100225 (#03100205) |
| 1 | 89000346 | FUEL-TANK RED/WHT (#89000346) |
| 1 | 89000356 | FUEL-TANK grey iron/black (#89000356) |
| 1 | 89000357 | Fuel tank, sky blue/navy (#89000357) |
| 2 | 01917800 | DECAL RH A (#01917800) |
| 3 | 01917900 | DECAL LH (#01917900) |
| 4 | 03106400 | MOULDING (#03106400) |
| 5 | 03103900 | GAS TANK CAP (#03103900) USE 887874 |
| 6 | 03101900 | GAS CAP FLANGE (#03101900) |
| 7 | 03102400 | FLANGE GASKET (#03102400) |
| 8 | 03102200 | GAS CAP SEAT (#03102200) |
| 9 | 03101600 | GAS CAP GASKET (#03101600) |
| 10 | 03101701 | RESTRICTOR (#03101701) USE 03101720 |
| 10 | 03101720 | RESTRICTOR 38MM (#03101720) |
| 11 | 03103200 | SCREW A (#03103200) |
| 12 | 98230830 | BOLT (#98230830) |
| 13 | 95100239 | WASHER (#95100239) |
| 14 | 31103565 | SPACER (#31103565) |
| 15 | 91551131 | GROMMET (#91551131) |
| 16 | 92660801 | CAGE NUT (#92660801) |
| 17 | 03105300 | PETCOCK-ELECTRIC 60 DEGREES (#03105300) |
| 18 | 03103000 | 1100 EV FUEL LEVEL SENSOR (#03103000) |
| 19 | 03736801 | USE 03736820 LOCK KIT (#03736801) |
| 20 | 01735500 | KEY BLANK SHORT NLA (#01735500) |
| 21 | 29995735 | DECAL UNLEADED A (#29995735) |
| 22 | 03472400 | COVER RH FRT B (#03472400) |
| 23 | 03472900 | COVER LH FRT (#03472900) |
| 24 | 98230618 | ALLEN BOLT A (#98230618) |
| 25 | 03462800 | CHROME WASHER (#03462800) |
| 26 | 91180600 | SPACER (#91180600) |
| 27 | 91551081 | GROMMET (#91551081) |
| 28 | 00823931055 | GASKET (#00823931055) |
| 29 | 03103500 | SPACER (#03103500) |
| 29 | 03103501 | SPACER A (#03103501) |
| 30 | 98230615 | ALLEN SCREW A (#98230615) |
