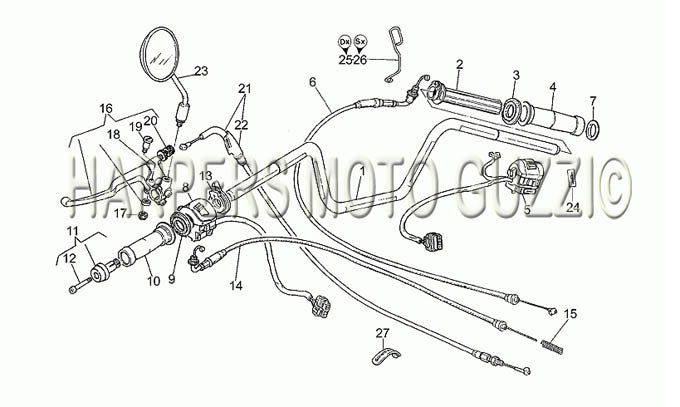

1997 2000 California EV (v11 EV Usa) 1100 Handlebar Controls
| Position | Part Number | Description |
|---|---|---|
| 1 | 03600300 | EV HANDLEBARS (#03600300) |
| 2 | 30603800 | THROTTLE TUBE (#30603800) USE AP8118316 |
| 2 | 30603804 | THROTTLE TUBE (#30603804) |
| 3 | 27603620 | RING (#27603620) |
| 4 | 27603520 | GRIP RH (#27603520) |
| 5 | 03738800 | RH lights selector (#03738800) |
| 5 | 03738820 | RH lights selector (#03738820) |
| 5 | 30738860 | SWITCH ASSY RH (#30738860) |
| 5 | 30738873 | SWITCH RH (#30738873) |
| 6 | 03117500 | THROTTLE CABLE A (#03117500) |
| 6 | 03117800 | Throttle cable (#03117800) |
| 6 | 97011801000 | THROTTLE CBL (#97011801000) |
| 7 | 29606970 | WASHER (PAIR) (#29606970) |
| 8 | 30738060 | SWITCH ASSY LH A (#30738060) |
| 9 | 27603120 | WASHER (#27603120) |
| 10 | 27603020 | GRIP LH (#27603020) |
| 11 | 30602761 | STABILIZER (#30602761) |
| 12 | 98662435 | ALLEN BOLT (#98662435) |
| 13 | 30135200 | CHOKE LEVER (#30135200) |
| 14 | 03132800 | CHOKE CABLE (#03132800) |
| 14 | 97011802000 | CHOKE CBL (#97011802000) |
| 15 | 94321070 | SPRING (#94321070) |
| 16 | 30605560 | CLUTCH LEVER ASSY (#30605560) |
| 17 | 92602206 | NUT (#92602206) USE STHN6MM |
| 18 | 30601800 | LEVER SUPPORT A (#30601800) |
| 19 | 30530528 | PIVOT SCREW A (#30530528) |
| 20 | 30602500 | ADJUSTER ASSY (#30602500)USE AP8118348 |
| 21 | 03093000 | CLUTCH CABLE EV (#03093000) |
| 21 | 97011803000 | CLUTCH CBL (#97011803000) |
| 22 | 30093860 | CABLE BOOT (#30093860) |
| 23 | 03769400 | SECOND GENERATION MIRRORS FOR EV (#03769400) |
| 23 | 31769465 | MIRROR (#31769465) |
| 24 | 28769550 | BADGE (#28769550) |
| 25 | 03669000 | CABLE GUIDE (#03669000) |
| 26 | 03669001 | CABLE GUIDE LH (#03669001) |
| 27 | 03609600 | RETAINER (#03609600) |
