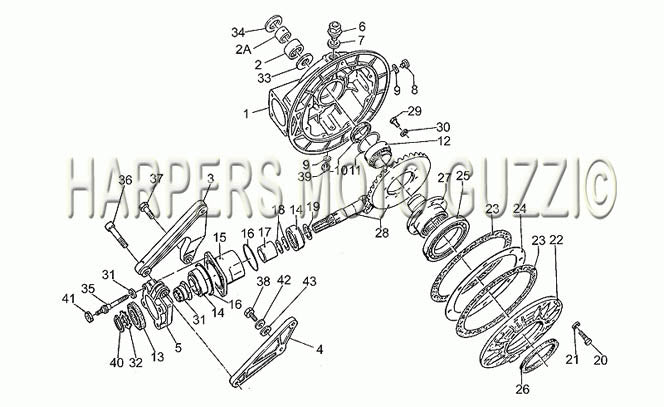

1998 1999 Sport Corsa 1100 Transmission Complete I
| Position | Part Number | Description |
|---|---|---|
| 1 | 01350310 | Transmission housing (#01350310) |
| 2 | 92252225 | ROLLER BEARING (#92252225) |
| 2 | 92259025 | INNER RACE (#92259025) |
| 3 | 01351010 | Ext. plate (#01351010) |
| 4 | 01352110 | Int. plate (#01352110) |
| 5 | 01350910 | Flange (#01350910) |
| 6 | 28351260 | PLUG USE 2935 1250 (#28351260) |
| 7 | 95100709 | CRUSH WASHER (95100709) (#95100709) |
| 8 | 95980214 | DRAIN PLUG (#95980214) |
| 9 | 10528900 | CRUSH WASHER, COPPER (#10528900) |
| 10 | 90403850 | SEAL (#90403850 ) |
| 11 | 12351100 | RING COPPER METAL SPACER (#12351100) |
| 12 | ||
| 13 | 90403552 | SEAL (#90403552) |
| 14 | 92249227 | BEARING (#92249227) |
| 15 | 18352400 | FLANGE (#18352400) |
| 16 | 90706584 | O RING (#90706584) |
| 17 | 18355100 | SPACER (#18355100) |
| 18 | 12355202 | SHIM 0.10MM (#12355202) |
| 18 | 12355203 | SHIM 0.15MM (#12355203) |
| 19 | 19355320 | SHIM 1.0MM (#19355320) |
| 19 | 19355321 | SHIM 1.1MM (#19355321) |
| 19 | 19355322 | SHIM 1.2MM (#19355322) |
| 19 | 19355323 | SHIM 1.3MM (#19355323) |
| 19 | 19355324 | SHIM 1.4MM (#19355324) |
| 19 | 19355325 | SHIM 1.5MM (#19355325) |
| 19 | 19355326 | SHIM 1.6MM (#19355326) |
| 19 | 19355327 | SHIM 1.7MM (#19355327) |
| 19 | 19355328 | SHIM 1.8MM (#19355328) |
| 19 | 19355329 | SHIM 1.9MM (#19355329) |
| 20 | 19357660 | SCREW (#19357660) |
| 21 | 14615901 | WASHER (#14615901) |
| 22 | 17350400 | FLANGE (#17350400) |
| 23 | 17350700 | DIFFERENTIAL BEARING GASKET (#17350700) |
| 24 | 17355400 | SHIM 0.8MM (#17355400) |
| 24 | 17355402 | SHIM 0.9MM (#17355402) |
| 24 | 17355404 | SHIM 1.0MM (#17355404) |
| 24 | 17355406 | SHIM 1.1MM (#17355406) |
| 24 | 17355408 | SHIM 1.2MM (#17355408) |
| 24 | 17355410 | SHIM 1.3MM (#17355410) |
| 24 | 17355412 | SHIM 1.5MM (#17355412) |
| 25 | 92201070 | BEARING (#92201070) |
| 26 | 90407085 | REAR DRIVE SEAL OUTPUT TO WHEEL (90407085) USE 9041 7085 (#90407085) |
| 27 | 17351400 | DRIVE FLANGE OR HUB NLA USE 1735 1401* (#17351400) |
| 28 | 30354602 | GEARSET 8/33 (#30354602) |
| 29 | 12356300 | SCREW (#12356300) |
| 31 | 30356700 | LOCK NUT (#30356700) |
| 32 | 30358100 | WASHER (#30358100) |
| 33 | 18214650 | FRONT SHIM (#18214650) |
| 34 | 37359005 | OUTER WASHER (#37359005) |
| 35 | 01357900 | COLUMN BOLT(#01357900) |
| 36 | 98610455 | ALLEN BOLT (#98610455) |
| 37 | 30558700 | BOLT (#30558700) |
| 38 | 98054530 | BOLT (#98054530) |
| 39 | 31003766 | DRAIN PLUG (#31003766) |
| 40 | 90271020 | CIRCLIP (#90271020) |
| 41 | 92630506 | NUT (#92630506) |
| 42 | 19149800 | WASHER (#19149800) USE AP8152220 |
| 43 | 95000210 | WASHER (#95000210) |
