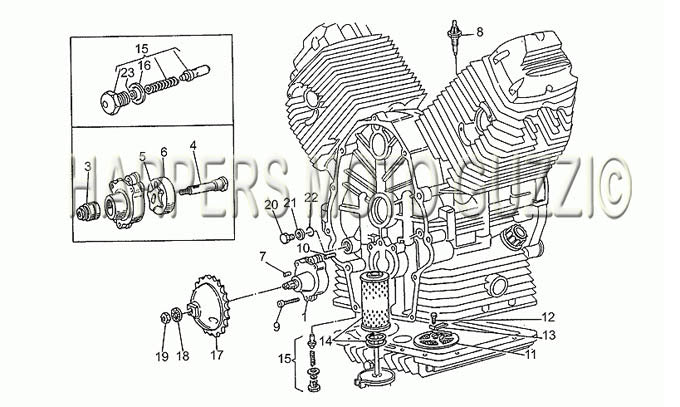

1998 2001 Nevada Club 750 Oil Pump Assy
| Position | Part Number | Description |
|---|---|---|
| 1 | 19146422 | OIL PUMP HD (#19146422) |
| 3 | 92252210 | BEARING (#92252210) |
| 4 | 20147810 | OIL PUMP SHAFT A (#20147810) |
| 5 | 20148410 | PUMP ROTOR HD (#20148410) |
| 6 | 20148610 | PUMP ROTOR HD (#20148610) |
| 7 | 92296723 | PUMP KEY A (#92296723) |
| 8 | 31999581 | OIL SENDER (#31999581) |
| 9 | 98620335 | SCREWS (#98620335) |
| 10 | 19018920 | PEG (#19018920) |
| 11 | 19152200 | FILTER (#19152200) |
| 12 | 98054314 | SCREW (#98054314) |
| 13 | 95187006 | STOP PLATE (#95187006) |
| 14 | 27153085 | FILTER, OIL (#27153085) USE 2A000633 |
| 15 | 31158250 | Oil pressure valve (#31158250) |
| 16 | 18144350 | CRUSH WASHER (#18144350) |
| 17 | 20147710 | PUMP GEAR HD (#20147710) |
| 18 | 19149800 | WASHER (#19149800) USE AP8152220 |
| 19 | 92602510 | NUT (#92602510) |
| 20 | 31016050 | PLUG (#31016050) |
| 21 | 18161150 | GASKET (#18161150) |
| 22 | 90706111 | O RING (#90706111) |
| 23 | 95004206 | WASHER (#95004206) |
