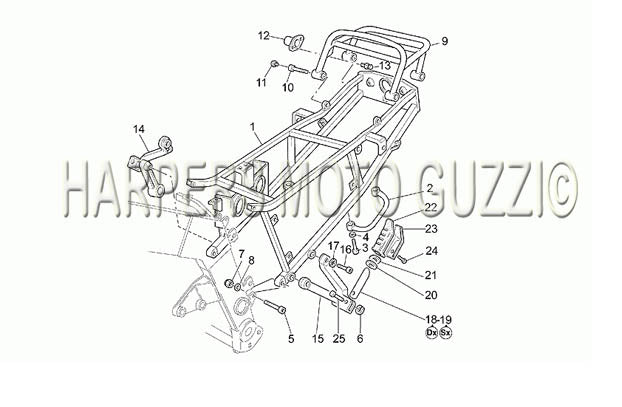

1998 2002 Quota ES 1100 Rear Frame
| Position | Part Number | Description |
|---|---|---|
| 1 | 30425625 | REAR FRAME D (#30425625) |
| 1 | 30425629 | REAR SUB FRAME BLACK (#30425629) |
| 2 | 30464330 | BATTERY LIFT HANDLE (#30464330) |
| 3 | 98612425 | SCREW (#98612425) |
| 4 | 14615901 | WASHER (#14615901) |
| 5 | 98820435 | SCREW (#98820435) |
| 6 | 90280006 | E CLIP (#90280006) USE 005965 |
| 7 | 92660008 | Nut (#92660008) |
| 8 | 95000208 | WASHER (#95000208) |
| 9 | 30466525 | LUGGAGE RACK (#30466525) |
| 11 | 30943400 | HOLE PLUG (#30943400) |
| 12 | 66466815 | HELMET LOCK (#66466815) |
| 13 | 66468115 | SECURITY BOLT (#66468115) |
| 14 | 30444629 | FOOT REST SUPPORT (#30444629) |
| 14 | 30444631 | #14 RH footrest support, grey (#30444631) |
| 15 | 30444729 | #15 LH footrest support, black (#30444729) |
| 15 | 30444731 | FOOT-REST HOLDER (#30444731) |
| 16 | 98622430 | SCREW (#98622430) |
| 18 | 66440730 | RH front foot rest pipe (#66440730) |
| 19 | 66441830 | LH Foot Rest Arm (#66441830) |
| 20 | 66441630 | Special Washer (#66441630) |
| 21 | 51609800 | SPRING WASHER (#51609800) |
| 22 | 66443230 | Rear Foot Peg (#66443230) |
| 23 | 31441260 | PLATE (#31441260) |
| 24 | 98290408 | Pin (#98290408) |
| 25 | 30440630 | PIN (#30440630) |
