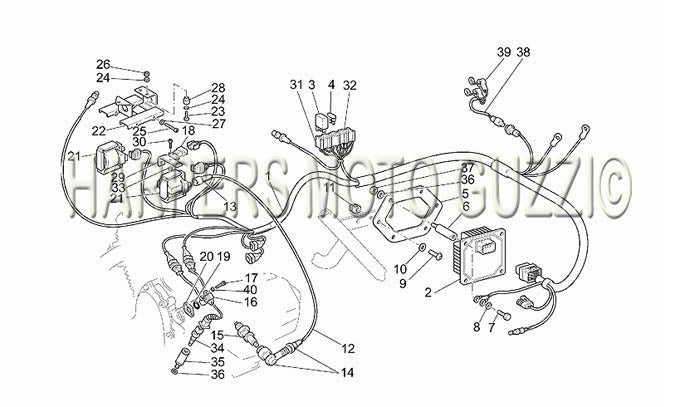

1999 2001 California Jackal 1100 Electrical System II
| Position | Part Number | Description |
|---|---|---|
| 1 | 03747130 | HARNESS-MAIN D (#03747130) |
| 2 | 03747200 | HARNESS-DASH B (#03747200) |
| 3 | 30749760 | PLATE A (#30749760) |
| 4 | 98622312 | SCREW (#98622312) |
| 5 | 28576590 | CLIP A (#28576590) |
| 6 | 30922260 | CLIP A (#30922260) |
| 7 | 61013800 | SPRING WASHER (#61013800) |
| 8 | 03748440 | BATTERY CABLE (#03748440) |
| 9 | 03707140 | SPARK PLUG CAP (#03707140) |
| 10 | 03753100 | HARNESS-T/LAMP A (#03753100) |
| 11 | 02747901 | GROUND CBL (#02747901) |
| 12 | 03764040 | INSTRUMENT SUPPORT (#03764040) |
| 13 | 98622318 | SCREW (#98622318) |
| 14 | 91551080 | GROMMET (#91551080) |
| 15 | 91180607 | SPACER (#91180607) |
| 16 | 30477101 | BRACKET RH (#30477101) USE 304771015 |
| 17 | 30477200 | BRACKET LH (#30477200) |
| 18 | 98622310 | ALLEN BOLT (#98622310) |
| 19 | 95100118 | WASHER (#95100118) |
| 20 | 92630206 | NUT (#92630206) |
| 21 | ||
| 22 | 28742560 | FUSE 15A (#28742560) use 290860 |
| 23 | 17750520 | TURN SIGNAL FLASHER (#17750520) |
| 24 | 17751200 | FLASHER HOLDER (#17751200) |
| 25 | 14609650 | TIE WRAP (#14609650) |
| 25 | 49609601 | TIE STRAP (#49609601) |
| 26 | 03704540 | BATTERY B (#03704540) |
| 27 | ||
| 28 | 03705540 | BATTERY HOLD DOWN (#03705540) |
| 29 | 00823945060 | pipe Vipla 3X5,5 (#00823945060) |
| 30 | 31750560 | FLASHER A (#31750560) |
| 31 | 31755660 | GROUND CABLE A (#31755660) |
