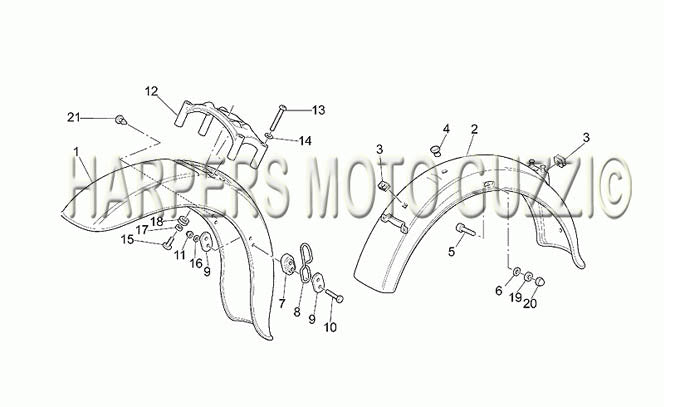

1999 2001 California Jackal 1100 Front Rear Mudguard
| Position | Part Number | Description |
|---|---|---|
| 1 | 03434340 | FRONT FNDR BARE A (#03434340) |
| 1 | 03434341 | FRONT FNDR RED A (#03434341) |
| 1 | 03434342 | FRONT FNDR BLACK (#03434342) |
| 1 | 03434343 | FRONT FNDR GREY D (#03434343) |
| 1 | 03434344 | FRONT FENDER MATTE BLACK (#03434344) |
| 2 | 03437041 | REAR FENDER RED (#03437041) |
| 2 | 03437042 | REAR FNDR BLACK D (#03437042) |
| 2 | 03437043 | REAR FNDR GREY A (#03437043) |
| 2 | 03437044 | REAR FENDER MATTE BLACK (#03437044) |
| 2 | 304370602 | REAR FENDER (#304370602) |
| 3 | 91551099 | RUBBER (#91551099) |
| 4 | 93180080 | PLUG (#93180080) |
| 5 | 98230835 | BOLT (#98230835) |
| 6 | 95000208 | WASHER (#95000208) |
| 7 | 03436400 | MOUNTING BLOCK (#03436400) |
| 8 | 03436500 | EYELET (#03436500) |
| 9 | 03436300 | PLATE (#03436300) |
| 10 | 98052225 | BOLT (#98052225) |
| 11 | 92781053 | LOCK NUT (#92781053) |
| 12 | 03436600 | FORK BRACE (#03436600) |
| 13 | 98230851 | ALLEN BOLT (#98230851) |
| 14 | 95004208 | WASHER (#95004208) |
| 15 | 98230622 | ALLEN SCREW (#98230622) |
| 16 | 95000205 | WASHER (#95000205) |
| 17 | 30576100 | BUSHING (#30576100) |
| 18 | 91551010 | GROMMET (#91551010) |
| 19 | 30435560 | SPACER A (#30435560) |
| 20 | 92781085 | CAP NUT (#92781085) |
| 21 | 93180072 | RUBBER A (#93180072) |
