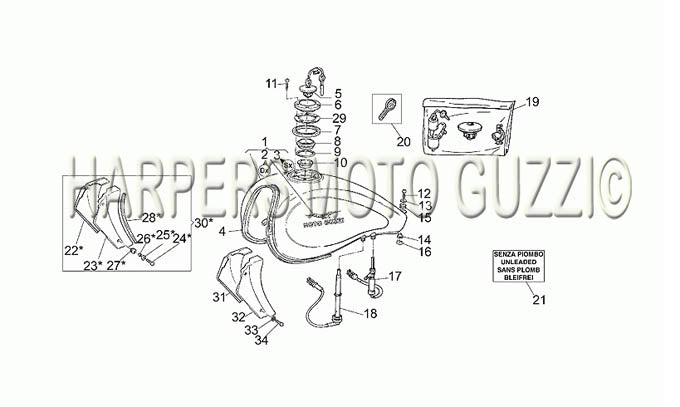

1999 2001 California Jackal 1100 Fuel Tank Usa Cdn Sgp
| Position | Part Number | Description |
|---|---|---|
| 1 | 03100220 | GAS TANK - BARE (#03100220) |
| 1 | 03100244 | FUEL-TANK (#03100244) RED |
| 1 | 03100245 | GAS TANK USA - BLACK (#03100245) |
| 1 | 03100246 | GAS TANK USA(#03100246) TITAN GREY |
| 2 | 03103920 | GAS CAP (#03103920) |
| 3 | 29108550 | HOSE CLAMP (#29108550) |
| 4 | 29104985 | FUEL VALVE (#29104985) |
| 5 | 00823956060 | T SAEJ 30 R7 6X12 (#00823956060) |
| 6 | 14102570 | CHECK VALVE A (#14102570) |
| 7 | 00823956080 | OIL BREATHER HOSE (#00823956080) |
| 8 | 03106620 | PIPE 3-WAY A (#03106620) |
| 9 | 29106660 | FITTING 3-WAY A (#29106660) |
| 10 | 01116030 | CARBON CANNISTER (#01116030) |
| 11 | 29105860 | RUBBER SLEEVE (#29105860) |
| 12 | 30115220 | INLET CONNECTOR (#30115220) |
| 13 | 93305008 | HOSE CLAMP A (#93305008) |
| 14 | 03736820 | LOCK KIT COMPLETE (#03736820) |
| 15 | 28157950 | BREATHER PIPE CLAMP (#28157950) |
| 16 | 00823956050 | Pipe SAE30 R73/16 (#00823956050) |
| 17 | 03113840 | Hose clamp (#03113840) |
| 18 | 98230630 | ALLEN BOLT A (#98230630) |
| 19 | 95001206 | WASHER (#95001206) |
| 20 | 91110712 | SPACER A (#91110712) |
| 21 | 92650006 | NUT (#92650006) |
