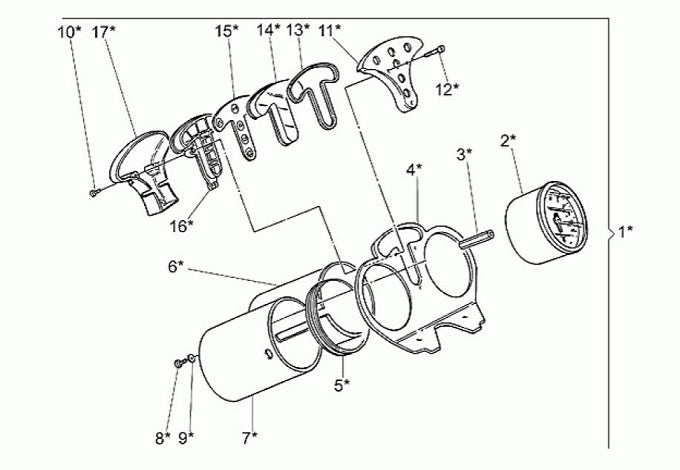

1999 2001 California Jackal 1100 Opt Electr Revolution Counter
| Position | Part Number | Description |
|---|---|---|
| 1 | 03979640 | KIT DASH PANEL TO ADD TACHOMETER D USE 0397 9645 (#03979640) |
| 2 | 02767200 | TACHOMETER WHITE FACE (#02767200) |
| 3 | 02763400 | STUD (#02763400) |
| 4 | 02764000 | BRACKET (#02764000) |
| 5 | 02762300 | RUBBER (#02762300) |
| 6 | 02761900 | TACH HOUSING (#02761900) |
| 7 | 02762000 | SPEEDO HOUSING (#02762000) |
| 8 | 98230512 | SCREW (#98230512) USE 831153 |
| 9 | 95129100 | WASHER (#95129100) |
| 10 | 98872110 | ALLEN BOLT (#98872110) |
| 11 | 02766200 | LIGHT COVER (#02766200) |
| 12 | 98872115 | ALLEN BOLT (#98872115) |
| 13 | 02768200 | GSKT (#02768200) |
| 14 | 02768400 | PROTECTION-DASH (#02768400) |
| 15 | 02781100 | PANEL (#02781100) |
| 16 | ||
| 17 | 02766500 | BOTTOM LITE COVER (#02766500) |
