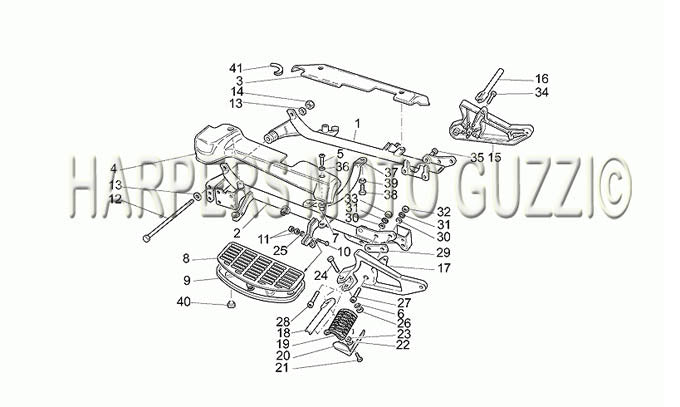

2001 2002 California Ev ev Touring 80 1100 Foot Rests
| Position | Part Number | Description |
|---|---|---|
| 1 | 03420300 | FRAME LWR RH C (#03420300) |
| 2 | 03422100 | FRAME LWR LH C (#03422100) |
| 3 | 03446930 | COVER RH (#03446930) |
| 4 | 03447410 | LH FRAME COVER (#03447410) |
| 5 | 98370621 | BOLT (#98370621) |
| 6 | 95008208 | WASHER (#95008208) |
| 7 | 93231606 | RUBBER BUSHING (#93231606) |
| 8 | 30447060 | FOOTPAD USE 03447070 (#30447060) |
| 9 | 29443501 | FOOTBOARD W/O PAD (#29443501) |
| 10 | 98082430 | Screw (#98082430) |
| 11 | 92630108 | NUT 8MM (#92630108) |
| 12 | 03429500 | Front Tie rod (#03429500) |
| 13 | 95008517 | Washer (#95008517) |
| 14 | 92606312 | Nut (#92606312) |
| 15 | 03443510 | RH footrest support (#03443510) |
| 16 | 23440710 | RF FOOTPEG A (#23440710) |
| 17 | 03446010 | LH footrest support (#03446010) |
| 18 | 23441810 | LF FOOTPEG A (#23441810) |
| 19 | 23443210 | FOOTREST RUBBER (#23443210) |
| 20 | 23441210 | FOOTREST PLATE (#23441210) |
| 21 | 98084314 | BOLT (#98084314) |
| 22 | 03013800 | WAVE WASHER (#03013800) |
| 23 | 91180602 | SPACER (#91180602) |
| 24 | 03442200 | Screw (#03442200) |
| 25 | ||
| 26 | 92640508 | Nut (#92640508) |
| 27 | 98683635 | Screw 12X35 (#98683635) |
| 28 | 98681650 | Screw (#98681650) |
| 29 | 17444250 | SPACER (#17444250) |
| 30 | 95100414 | WASHER (#95100414) |
| 31 | 95022112 | Washer (#95022112) |
| 32 | 92606512 | Low Nut (#92606512) |
| 33 | 92602312 | NUT (#92602312) |
| 34 | 98683640 | Screw 12X40 (#98683640) |
| 35 | 93180245 | RUBBER PLUG (#93180245) |
| 36 | 95005306 | WASHER (#95005306) |
| 37 | 30425260 | CROSS BRACE A (#30425260) |
| 38 | 98350522 | Bolt, Cradle Strap (#98350522) |
| 39 | 95022110 | Washer (#95022110) |
| 40 | 29447150 | RUBBER PAD A (#29447150) |
| 41 | 00823931055 | GASKET (#00823931055) |
