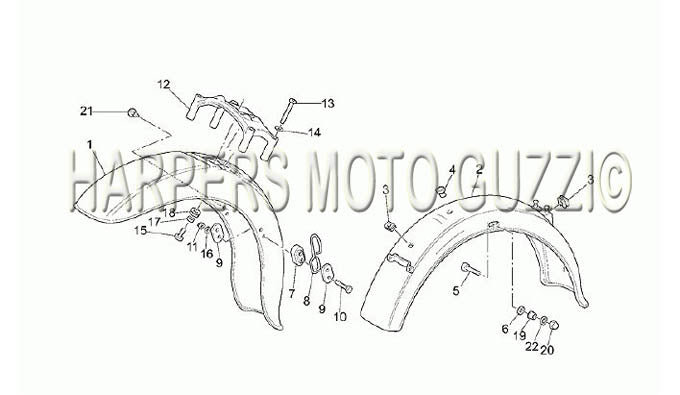

2001 2002 California Stone 1100 Front Rear Mudguard
| Position | Part Number | Description |
|---|---|---|
| 1 | 03434340 | FRONT FNDR BARE A (#03434340) |
| 1 | 03434351 | FRONT FNDR MATTE GREY (#03434351) |
| 1 | 89000403 | FRONT FNDR BLACK (#89000403) |
| 2 | 03437051 | REAR FENDER-GREY 2002 STONE (#03437051) |
| 2 | 304370602 | REAR FENDER (#304370602) |
| 2 | 89000405 | REAR FNDR BLACK (#89000405) |
| 3 | 91551099 | RUBBER (#91551099) |
| 4 | 93180080 | PLUG (#93180080) |
| 5 | 98223845 | Bolt, 8mmx45mm (#98223845) |
| 5 | 98350460 | SCREW (#98350460) |
| 6 | 93110130 | Gasket 13x22 (#93110130) |
| 7 | 03436400 | MOUNTING BLOCK (#03436400) |
| 8 | 03436500 | EYELET (#03436500) |
| 9 | 03436300 | PLATE (#03436300) |
| 10 | 98082225 | Screw (#98082225) |
| 11 | 92781053 | LOCK NUT (#92781053) |
| 12 | 03436645 | FORK BRACE(after use 03436600) (#03436645) |
| 13 | 98230851 | ALLEN BOLT (#98230851) |
| 14 | 95005308 | WASHER M8 (#95005308) |
| 15 | 98230622 | ALLEN SCREW (#98230622) |
| 16 | 95000205 | WASHER (#95000205) |
| 17 | 30576100 | BUSHING (#30576100) |
| 18 | 91551010 | GROMMET (#91551010) |
| 19 | 30435560 | SPACER A (#30435560) |
| 19 | 31103565 | SPACER (#31103565) |
| 20 | 92787008 | NUT (#92787008) USE 860651 |
| 21 | 93180072 | RUBBER A (#93180072) |
| 22 | 95005312 | Washer, 8.5x24x2 (#95005312) |
