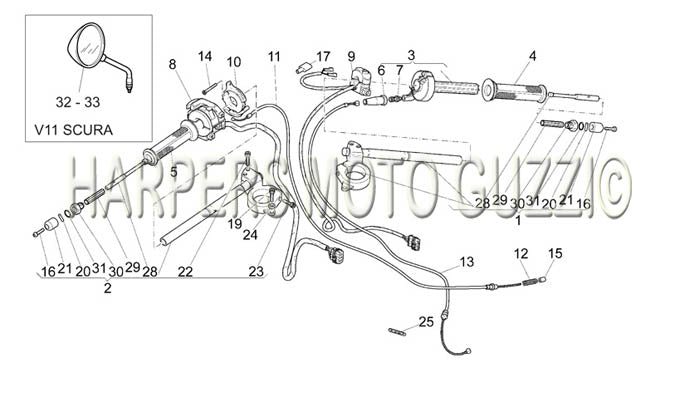

2001 2002 V 11 Le Mans sport Naked 1100 Handlebar Controls
| Position | Part Number | Description |
|---|---|---|
| 1 | 01600660 | Right half handlebar (#01600660) |
| 2 | 01600760 | Left half handlebar (#01600760) |
| 3 | 01603400 | THROTTLE ASSY (#01603400) |
| 4 | 30603500 | RH GRIP (#30603500) |
| 5 | 30603000 | LH GRIP (#30603000) |
| 6 | 27117615 | BOOT (#27117615) |
| 7 | 27603715 | ADJUSTER (#27603715) |
| 8 | 01738030 | LH SWITCH BLOCK (#01738030) |
| 8 | 01738035 | LH SWITCH BLOCK (USA) (#01738035) |
| 9 | 01738800 | RH SWITCH (#01738800) |
| 10 | 01132330 | CHOKE LEVER (#01132330) |
| 11 | 01132830 | CHOKE CABLE (#01132830) |
| 12 | 94321073 | SPRING (#94321073) |
| 13 | 01117560 | THROTTLE CABLE 02 LEMANS (#01117560) |
| 14 | 98257320 | Screw, 3mmx20mm (#98257320) |
| 15 | 39094200 | RUBBER BLOCK (#39094200) |
| 16 | 98622312 | SCREW (#98622312) |
| 17 | 01664030 | CAP (#01664030) |
| 18 | 01999232 | MIRROR SET (NAKED) (#01999232) |
| 19 | 98682314 | Screw (#98682314) |
| 20 | 95510420 | ROLLER (#95510420) |
| 21 | 01602830 | BAR WEIGHT EXTERNAL (#01602830) |
| 22 | 98682320 | Screw (#98682320) |
| 22 | 98682325 | BOLT (#98682325) |
| 23 | 98682430 | Screw (#98682430) |
| 24 | 95008205 | Washer 5.3mm (#95008205) |
| 25 | 01609630 | Clamp (#01609630) |
| 26 | 01769832 | LH MIRROR (#01769832) |
| 27 | 01769432 | MIRROR RH (#01769432) |
| 28 | 01602230 | BAR WEIGHT INTERNAL (#01602230) |
| 29 | 01602130 | RUBBER SLEEVE (#01602130) |
| 30 | 01602930 | RING NUT (#01602930) |
| 31 | 90706099 | O RING (#90706099) |
| 32 | 01769890 | LH MIRROR (#01769890) |
| 33 | 01769490 | RH MIRROR (#01769490) |
