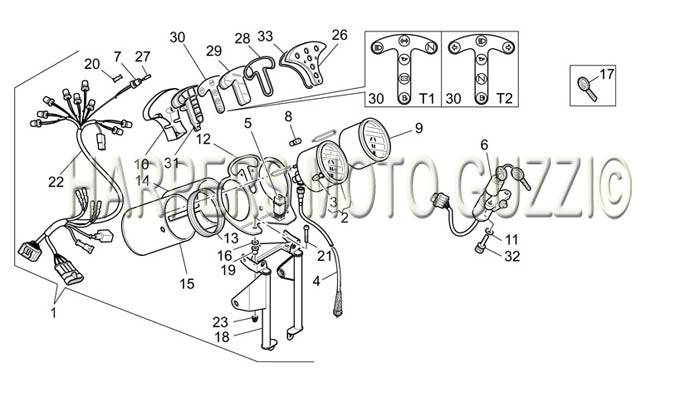

2002 2003 Nevada Base club 750 Dashboard
| Position | Part Number | Description |
|---|---|---|
| 1 | 31760081 | #01 Dashboard complete (#31760081) |
| 1 | 31760082 | #01 Dashboard complete (#31760082) |
| 1 | 31760083 | #01 Dashboard complete (#31760083) |
| 1 | 31760084 | #01 Dashboard complete (#31760084) |
| 2 | 31761583 | #02 Speedometer (#31761583) |
| 2 | 31762483 | #02 Speedometer (#31762483) |
| 3 | 31762883 | Speedometer Reset Knob (#31762883) |
| 4 | 31760483 | Odometer cable (#31760483) |
| 5 | 28745761 | HAZARD SWITCH (#28745761) |
| 6 | 01782500 | IGNITION SWITCH (#01782500) |
| 7 | 02768600 | LAMP HOLDER (#02768600) |
| 8 | 93450120 | BULB ALL GLASS (#93450120) |
| 9 | 31767283 | #09 Electronic revolution counter (#31767283) |
| 10 | 31766583 | #10 Lower cover (#31766583) |
| 11 | 95008208 | WASHER (#95008208) |
| 12 | 31764083 | #12 Dashboard lower support (#31764083) |
| 13 | 02762301 | SPEEDO/TAC RUBBER GASKET (#02762301) |
| 14 | 31762083 | #14 Odometer support (#31762083) |
| 15 | 31761883 | #15 Tachometer support (#31761883) |
| 16 | 95021206 | Washer (#95021206) |
| 17 | 30735500 | IGNITION KEY BLANK (#30735500) |
| 18 | 31506383 | #18 Socket support (#31506383) |
| 19 | 93222020 | RUBBER MOUNT (#93222020) USE 93222023 |
| 20 | 93400012 | Lamp Holder End (#93400012) |
| 21 | 98350310 | Screw (#98350310) |
| 22 | 31747283 | #02 Instrum.board cable kit (#31747283) |
| 22 | 31747284 | #02 Instrum.board cable kit (#31747284) |
| 23 | 92650136 | CLUTCH MOUNT NUT (#92650136) |
| 24 | 98692318 | ALLEN SCREW (#98692318) |
| 25 | 95008306 | WASHER (#95008306) |
| 26 | 31766283 | Dash Lamp Cover (#31766283) |
| 27 | 93450140 | BULB (93450140) (#93450140) USE 164634 |
| 28 | 02768200 | GSKT (#02768200) |
| 29 | 02768400 | PROTECTION-DASH (#02768400) |
| 30 | 02781101 | LAMP PANEL (#02781101) |
| 30 | 03781150 | LENS (#03781150) |
| 31 | ||
| 32 | 97260415 | SECURITY BOLT A (#97260415) |
