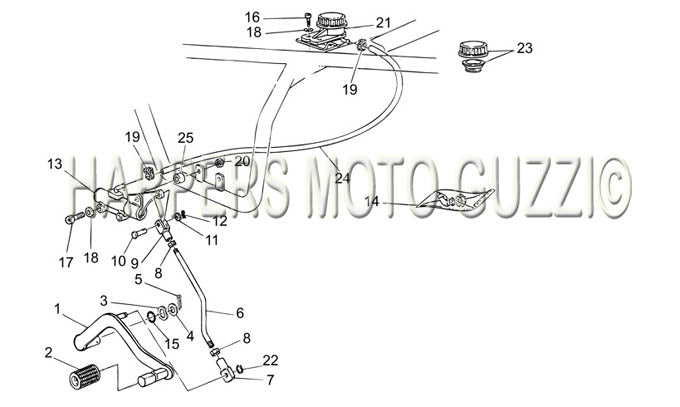

2002 2003 Nevada Base club 750 Rear Master Cylinder
| Position | Part Number | Description |
|---|---|---|
| 1 | 31677083 | #01 Rear brake lever (#31677083) |
| 2 | 14251001 | SHIFT AND BRAKE PEDAL RUBBER (#14251001) |
| 3 | 95129260 | SPRING WASHER (#95129260) |
| 4 | 95008215 | Washer (#95008215) |
| 5 | 95500227 | COTTER PIN (#95500227) |
| 6 | 31675283 | #06 Tie rod (#31675283) |
| 7 | 18257551 | BLOCK (#18257551) |
| 8 | 92609007 | Bolt (#92609007) |
| 9 | 31626860 | #09 Fork (#31626860) |
| 10 | 95780265 | PIN (#95780265) USE 95770265 |
| 11 | 95129111 | Washer (#95129111) |
| 12 | 95500221 | Split Pin (#95500221) |
| 13 | 31666990 | MASTER CYL ASSY (#31666990) |
| 14 | 19659500 | REV KIT (#19659500) |
| 15 | 90706141 | O RING (#90706141) USE 847180 |
| 16 | 98682312 | Screw, 6x12mm (#98682312) |
| 17 | 98680330 | Screw (#98680330) |
| 18 | 95008306 | WASHER (#95008306) |
| 19 | 61108500 | CLIP (#61108500) |
| 20 | 92640506 | Nut, 6mmx1.0 (#92640506) |
| 21 | 65663500 | BRAKE RESERVOIR (#65663500) |
| 22 | 90271008 | SNAP RING (#90271008) |
| 23 | 17661052 | MASTER CYLINDER LID W/ BELLOWS (#17661052) |
| 24 | 00823950050 | TUBE (#00823950050) |
| 25 | 91180604 | SPACER (#91180604) |
