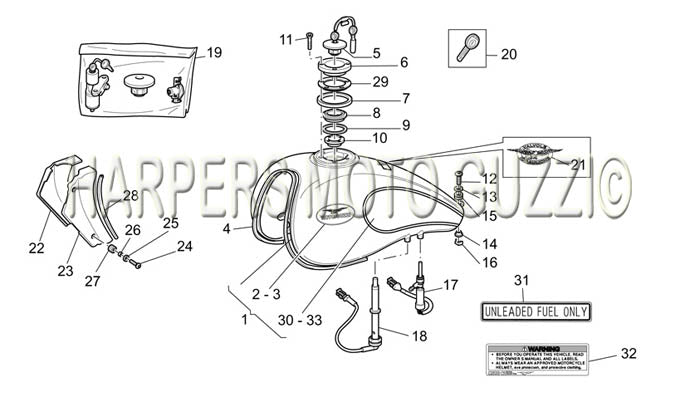

2002 California Ev ev Touring PL 1100 Fuel Tank
| Position | Part Number | Description |
|---|---|---|
| 1 | 03100200 | FUEL TANK (#03100200) BARE. USE 03100220 |
| 1 | 03100220 | GAS TANK - BARE (#03100220) |
| 1 | 89000444 | FUEL-TANK red/black (#89000444) |
| 1 | 89000445 | FUEL TANK, BLACK EV 2002 (#89000445) |
| 1 | 89000446 | Fuel tank white (#89000446) |
| 1 | 89000465 | FUEL-TANK 03 EV RED/CHROME (#89000465) |
| 1 | 89000466 | FUEL-TANK EV Touring BLK (#89000466) |
| 1 | 89000467 | FUEL-TANK WHITE 02 EV (#89000467) |
| 2 | 03917810 | Moto Guzzi Red / Gold RH (#03917810) |
| 2 | 03917841 | DECAL RH (#03917841) |
| 2 | 03917844 | Sticker RH (#03917844) |
| 3 | 03917910 | Moto Guzzi Red / Gold LH (#03917910) |
| 3 | 03917941 | DECAL LH (#03917941) |
| 3 | 03917944 | DECAL LH (#03917944) |
| 4 | 03106400 | MOULDING (#03106400) |
| 5 | ||
| 6 | 03101900 | GAS CAP FLANGE (#03101900) |
| 7 | 03102400 | FLANGE GASKET (#03102400) |
| 8 | 03102200 | GAS CAP SEAT (#03102200) |
| 9 | 03101600 | GAS CAP GASKET (#03101600) |
| 10 | 03101720 | RESTRICTOR 38MM (#03101720) |
| 11 | 03103200 | SCREW A (#03103200) |
| 12 | 98350430 | Hex Socket Screw (#98350430) |
| 13 | 95100239 | WASHER (#95100239) |
| 14 | 31103565 | SPACER (#31103565) |
| 15 | 91551131 | GROMMET (#91551131) |
| 16 | 92660801 | CAGE NUT (#92660801) |
| 17 | 03105300 | PETCOCK-ELECTRIC 60 DEGREES (#03105300) |
| 18 | 03103000 | 1100 EV FUEL LEVEL SENSOR (#03103000) |
| 19 | 03736820 | LOCK KIT COMPLETE (#03736820) |
| 19 | 03736850 | Lock kit (#03736850) |
| 20 | 30735500 | IGNITION KEY BLANK (#30735500) |
| 21 | 03917543 | Valvole Idrauliche, Sticker (#03917543) |
| 22 | 03472400 | COVER RH FRT B (#03472400) |
| 23 | 03472900 | COVER LH FRT (#03472900) |
| 24 | 98370614 | Screw (#98370614) |
| 25 | 03462801 | Washer (#03462801) |
| 26 | 91180600 | SPACER (#91180600) |
| 27 | 91551081 | GROMMET (#91551081) |
| 28 | 00823931055 | GASKET (#00823931055) |
| 29 | 03103500 | SPACER (#03103500) |
| 30 | 03923911 | RH Decal, Gold Line (#03923911) |
| 30 | 03923912 | Black RH line decal (#03923912) |
| 30 | 03923913 | RH Decal, Red Line (#03923913) |
| 31 | 03995730 | DECAL UNLEADED FUEL ONLY (#03995730) |
| 32 | 30944300 | WARNING DECAL (#30944300) |
| 33 | 03923914 | LH Decal, Gold Line (#03923914) |
| 33 | 03923915 | Sticker LH (#03923915) |
| 33 | 03923916 | LH Decal, Red Line (#03923916) |
