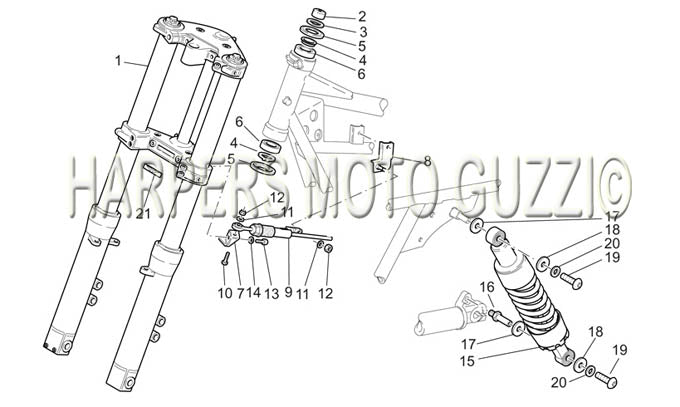

2002 California Special Sport al. PL 1100 Front Fork
| Position | Part Number | Description |
|---|---|---|
| 1 | 98622430 | SCREW (#98622430) |
| 2 | 03500660 | UPPER H-HAR CLAMP (#03500660) |
| 3 | 98052560 | BOLT (#98052560) |
| 4 | 03500260 | HANDLEBAR CLAMP (#03500260) |
| 5 | 27530505 | WASHER (#27530505) USE AP8123511 |
| 6 | 27530503 | RUBBER SLEEVE A (#27530503) |
| 7 | 03493100 | FORK CROWN C (#03493100) |
| 8 | 03498100 | RING NUT A (#03498100) |
| 9 | 03530503 | SPACER A (#03530503) |
| 10 | 92630110 | NUT (#92630110) |
| 11 | 03494000 | FORK BASE C (#03494000) |
| 12 | 03530548 | Fork Cap Nut (#03530548) |
| 13 | 03530541 | O RING (#03530541) |
| 14 | 03530549 | ROD (#03530549) |
| 15 | 03530550 | RING (#03530550) |
| 16 | 03530551 | PLUG (#03530551) |
| 17 | 03530552 | TUBE (#03530552) |
| 18 | 03526600 | FORK SPRING A (#03526600) |
| 19 | 03525440 | FORK TUBE (#03525440) |
| 20 | ||
| 21 | 03530553 | SPRING (#03530553) |
| 22 | 03530524 | DUST SEAL (#03530524) for Fork seal/dust cover use 03530000 |
| 23 | 03530525 | CIRCLIP (#03530525) |
| 24 | 03530526 | FORK SEAL (#03530526) Fork seal/dust cover kit use 03530000. |
| 25 | 03530527 | SPACER A (#03530527) |
| 26 | 03530528 | BUSHING-UPPER (#03530528) USE AP8163093 |
| 27 | 03490730 | LH FORK LEG COMPLETE (#03490730) |
| 28 | 03522601001 | LH SLEEVE (#03522601001) |
| 29 | 03490630 | RH FORK LEG COMPLETE (#03490630) |
| 30 | 03522501001 | RH sleeve (#03522501001) |
| 31 | 98680340 | Screw (#98680340) |
| 32 | ||
| 33 | 03530530 | ALLEN BOLT (#03530530) |
| 34 | 03530521 | VALVE ASSY LWR A (#03530521) |
| 35 | 98370619 | BOLT (#98370619) |
| 36 | 01517700 | BADGE (#01517700) |
| 37 | 95005307 | Washer (#95005307) |
| 38 | 23943410 | CHROME PLUG (#23943410) |
