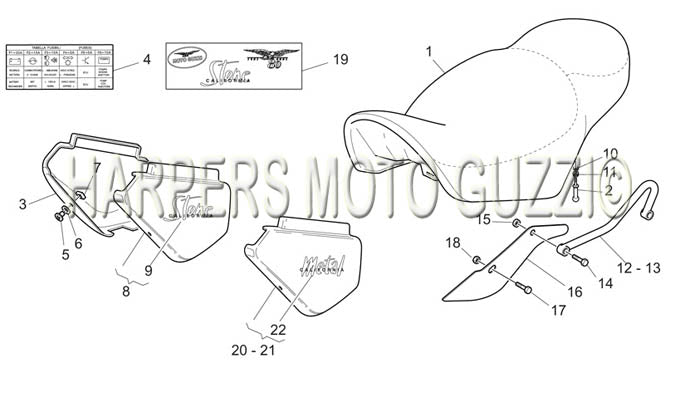

2002 California Stone metal PL 1100 Saddle Central Bod
| Position | Part Number | Description |
|---|---|---|
| 1 | 03460547 | SEAT STONE METAL (#03460547) |
| 2 | 03461147 | SEAT PIN (#03461147) |
| 3 | 03476206 | RH Sidecover, Blank (#03476206) |
| 3 | 03476250 | SIDE COVER RH/ STONE (#03476250) |
| 3 | 03476251 | RH SIDE COVER MATTE GREY/ORANGE (#03476251) |
| 3 | 03476252 | RH SIDE COVER MATTE/BLACK (#03476252) |
| 3 | 89000415 | RH side cover black (#89000415) |
| 4 | 03945400 | DECAL-FUSEBOX (#03945400) |
| 5 | 98370616 | BOLT (#98370616) |
| 6 | 66478610 | WASHER (#66478610) |
| 7 | 92660601 | CAGE NUT (#92660601) |
| 8 | 03476306 | SIDE COVER LH BARE (#03476306) |
| 8 | 03476350 | LH SIDECOVER MATTE GREY (#03476350) |
| 8 | 03476351 | LH SIDECOVER MATTE GREY/ORANGE (#03476351) |
| 8 | 03476352 | LH SIDE COVER MATTE GREY/BLACK (#03476352) |
| 8 | 89000416 | LH side cover black (#89000416) |
| 9 | 03922051 | (#03922051) |
| 9 | 03922052 | Sticker Cal.Stone silv/black (#03922052) |
| 9 | 03922053 | (#03922053) |
| 9 | 03922055 | (#03922055) |
| 10 | 95100141 | WASHER (#95100141) |
| 11 | 92650036 | Flanged Nut (#92650036) |
| 12 | 03464356 | GRAB HANDLE RH (#03464356) |
| 13 | 03464357 | GRAB HANDLE LH (#03464357) |
| 14 | 98680450 | ALLEN BOLT (#98680450) |
| 15 | 91180842 | SPACER (#91180842) |
| 16 | 03467347 | REAR FRAME COVER (#03467347) |
| 17 | 98350416 | Screw (#98350416) |
| 18 | 92606208 | NUT (#92606208) |
| 19 | 03923350 | Decal set (#03923350) |
| 19 | 03923351 | Decal Set, Stone Orange (#03923351) |
| 19 | 03923352 | Decal Set, Stone White (#03923352) |
| 19 | 03923353 | Decal Set, Stone Black (#03923353) |
| 20 | 89000398 | RH SIDECOVER BLACK (#89000398) |
| 21 | 89000401 | LH SIDECOVER BLACK (#89000401) |
| 22 | 03922054 | TRANSFER STONE METAL (#03922054) |
