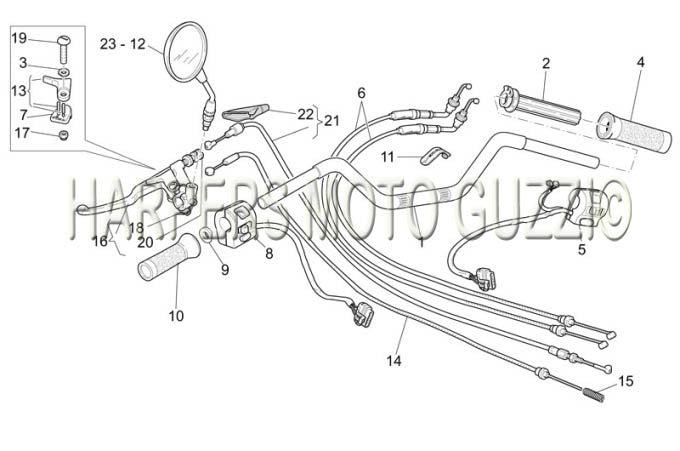

2003 2004 California Stone touring pl cat 1100 Handlebar Controls
| Position | Part Number | Description |
|---|---|---|
| 1 | 03600346 | STONE HANDLEBARS (#03600346) |
| 2 | 03603845 | THROTTLE PIPE (#03603845) |
| 3 | 27530594 | WASHER (#27530594) |
| 4 | 31603565 | STOCK GRIP-RH (#31603565) |
| 5 | 03738846 | SWITCH RH USA (#03738846) |
| 6 | 03117545 | THROTTLE CABLE (#03117545) |
| 7 | 27530595 | PLATE A (#27530595) |
| 8 | 03738045 | SWITCH LEFT EV/STONE/SPECIAL (#03738045) |
| 9 | 03604245 | BUSHING, CLUTCH LEVER (#03604245) |
| 10 | 31603065 | GRIP LH (#31603065) |
| 11 | 01609630 | Clamp (#01609630) |
| 12 | 03769831 | LH Rear View Mirror (#03769831) |
| 13 | 27135215 | CHOKE LEVER (#27135215) Use 00H00902661 |
| 14 | 03132845 | CHOKE CABLE (#03132845) |
| 15 | 94321070 | SPRING (#94321070) |
| 16 | 03605545 | CLUTCH LEVER ASSY (#03605545) |
| 17 | 92630106 | NUT USE 92630707 (#92630106) |
| 18 | 30601060 | BRACKET (#30601060) USE AP 8118349 |
| 19 | 27604315 | PIVOT SCREW (#27604315) |
| 20 | 30602500 | ADJUSTER ASSY (#30602500)USE AP8118348 |
| 21 | 03093070 | Clutch Cable (#03093070) |
| 22 | 27663815 | CABLE BOOT (#27663815) |
| 23 | 03769431 | MIRROR RH ROUND (#03769431) |
