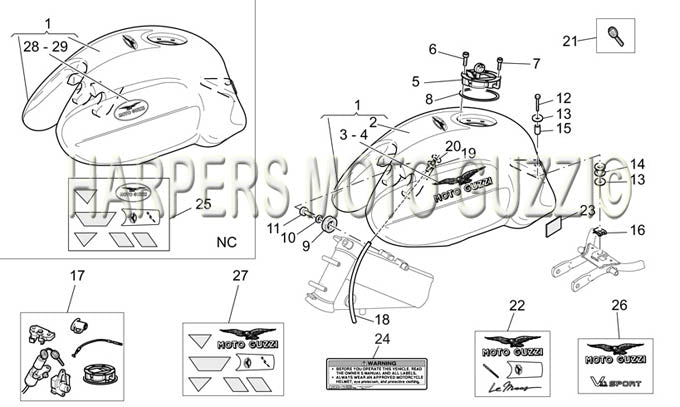

2003 2004 V 11 1100 Fuel Tank
| Position | Part Number | Description |
|---|---|---|
| 1 | 01100290 | Fuel tank blank (#01100290) |
| 1 | 89000493 | Gas Tank Dark Grey (#89000493) |
| 1 | 89000494 | FUEL-TANK Race Red (#89000494) |
| 1 | 89000498 | Fuel Tank Red, Rosso Corsa (#89000498) |
| 1 | 89000535 | FUEL TANK NERO CORSA (#89000535) |
| 2 | 01917590 | TANK PAD (#01917590) |
| 2 | 01917591 | Fuel Tank Blk Stripe Decal Bal (#01917591) |
| 3 | 01917890 | TANK DECAL (#01917890) |
| 4 | 01917990 | LH Decal Fuel Tank Red Ballabi (#01917990) |
| 5 | 01103960 | Fuel Filler Cap (#01103960) |
| 5 | 01103990 | Tank cap (#01103990) |
| 6 | 98690230 | Hex Socket Screw (#98690230) |
| 7 | 98622216 | ALLEN BOLT (#98622216) |
| 8 | 01101700 | GAS CAP GASKET (#01101700) |
| 9 | 66103415 | RUBBER MOUNT (#66103415) |
| 10 | 14615901 | WASHER (#14615901) |
| 11 | 98622420 | ALLEN BOLT A (#98622420) |
| 12 | 98082445 | Screw, (#98082445) |
| 13 | 95100239 | WASHER (#95100239) |
| 14 | 02107100 | TANK GROMMET (#02107100) |
| 15 | 91180831 | Spacer, 8.4x12x21 (#91180831) |
| 16 | 01576530 | Nut with Clip (#01576530) |
| 17 | 01736890 | Lock kit (#01736890) |
| 17 | 01736891 | Lock Kit (#01736891) |
| 18 | 00823944050 | HOSE (#00823944050) |
| 19 | 30103730 | UNION (#30103730) |
| 20 | 30104630 | GASKET (#30104630) |
| 21 | 30735500 | IGNITION KEY BLANK (#30735500) |
| 22 | 01923390 | Decal set (#01923390) |
| 22 | 01923391 | DECAL SET (#01923391) |
| 23 | 01103860 | Vibration Damping Rubber (#01103860) |
| 24 | 30944300 | WARNING DECAL (#30944300) |
| 25 | 01948093 | Tank decal set (#01948093) |
| 26 | 01923366 | Decal set (#01923366) |
| 26 | 01923367 | Decal set (#01923367) |
| 27 | 01948092 | Tank decal set (#01948092) |
| 28 | 03917810 | Moto Guzzi Red / Gold RH (#03917810) |
| 29 | 03917910 | Moto Guzzi Red / Gold LH (#03917910) |
