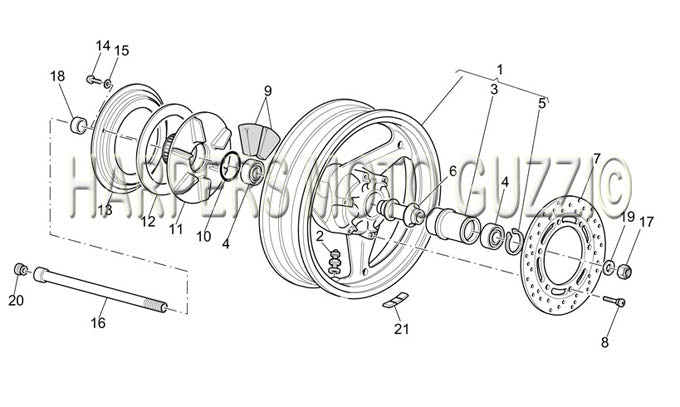

2003 2004 V 11 1100 Rear Wheel
| Position | Part Number | Description |
|---|---|---|
| 1 | 01630630 | WHEEL REAR (#01630630) |
| 2 | 28617760 | TIRE VALVE A (#28617760) |
| 3 | 01632200 | HUB INTERNAL B (#01632200) |
| 4 | 92204220 | BEARING (#92204220) |
| 5 | 90271055 | CIRCLIP (#90271055) |
| 6 | 01634000 | SPACER INNER (#01634000) |
| 7 | 03635700 | REAR BRAKE DISCO DISCO FRENO POST. ORO (#03635700) USE 01635700 |
| 8 | 30611460 | ALLEN BOLT (#30611460) |
| 9 | 01336800 | RUBBER BLOCK (#01336800) |
| 10 | 90706490 | O RING (#90706490) |
| 11 | 01335230 | CUSH HUB (#01335230) |
| 12 | 14335350 | RING (#14335350) |
| 13 | 14335650 | FLANGE (#14335650) |
| 14 | 98230620 | ALLEN BOLT (#98230620) |
| 15 | 03013800 | WAVE WASHER (#03013800) |
| 16 | 01633330 | REAR AXLE (#01633330) |
| 17 | 92630118 | Nut (#92630118) |
| 18 | 01634130 | RR AXLE SPACER (#01634130) |
| 19 | 95008219 | Washer (#95008219) |
| 20 | 93180111 | RUBBER PLUG (#93180111) |
| 21 | 14616150 | WEIGHTS (#14616150) |
