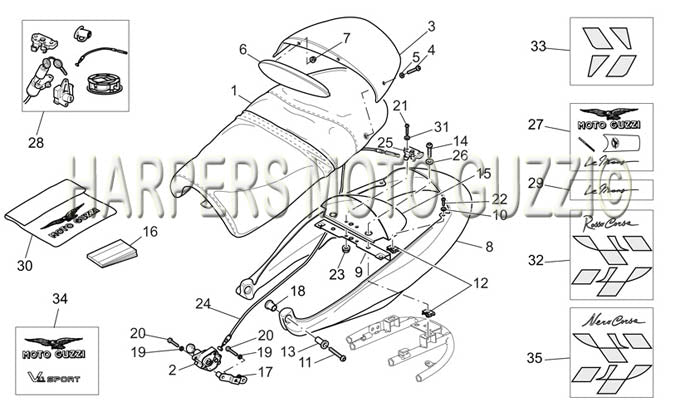

| Position |
Part Number |
Description |
| 1 |
01460560
|
SEAT (#01460560) |
| 1 |
01460580
|
Seat - Cafe' Sport (#01460580) |
| 2 |
02468100
|
LOCK- SEAT (#02468100) |
| 3 |
01466430
|
SEAT COVER BARE (#01466430) |
| 3 |
01466464
|
SEAT COVER, GREY (#01466464) |
| 3 |
01466465
|
SEAT COVER RED (#01466465) |
| 3 |
01466490
|
SEAT COVER RED (#01466490) |
| 3 |
01466491
|
SEAT COVER Nero Corsa (#01466491) |
| 4 |
98370621
|
BOLT (#98370621) |
| 5 |
29577860
|
PLASTIC WASHER (#29577860) |
| 6 |
01461530
|
Seat Cover Pillow Ballabio (#01461530) |
| 6 |
01461580
|
Seat Cover Pillow Cafe' Sport (#01461580) |
| 7 |
92650036
|
Flanged Nut (#92650036) |
| 8 |
01573160
|
Rear Tail, Blank (#01573160) |
| 8 |
01573164
|
TAIL, BLACK/GREY (#01573164) |
| 8 |
01573165
|
TAIL, BLACK/RED (#01573165) |
| 8 |
01573166
|
TAIL, BLACK (#01573166) |
| 8 |
01573167
|
TAIL, Red (#01573167) |
| 8 |
01573190
|
Tail piece cover grey/chrome (#01573190) |
| 8 |
01573191
|
Tail piece cover Nero Corsa (#01573191) |
| 9 |
01573760
|
PLATE (#01573760) |
| 10 |
66478610
|
WASHER (#66478610) |
| 11 |
98370831
|
Screw (#98370831) |
| 12 |
28576592
|
Nut w/ Clip, 6mm (#28576592) |
| 13 |
91120820
|
Spacer (#91120820) |
| 14 |
98350416
|
Screw (#98350416) |
| 15 |
01479660
|
DOCUMENT HOLDER (#01479660) |
| 16 |
01900090
|
O MANL LE MANS, V11 SPORT, ROSSO CORSA I-GB-F-D (#01900090) |
| 16 |
01900091
|
Le Mans, V11 Sport, Rosso Corsa Owners Manual (#01900091) |
| 17 |
01462430
|
LOCK BRACKET (#01462430) |
| 18 |
93180721
|
RUBBER BUSHING (#93180721) |
| 19 |
14217901
|
LOCK WASHER (#14217901) USE AP8152105 |
| 20 |
98350320
|
SCREW (#98350320) |
| 21 |
98250625
|
ALLEN BOLT (#98250625) |
| 22 |
98370616
|
BOLT (#98370616) |
| 24 |
01468830
|
SEAT LOCK CABLE (#01468830) |
| 25 |
02468600
|
LATCH-SEAT (#02468600) |
| 26 |
95005312
|
Washer, 8.5x24x2 (#95005312) |
| 27 |
01923390
|
Decal set (#01923390) |
| 27 |
01923391
|
DECAL SET (#01923391) |
| 28 |
01736890
|
Lock kit (#01736890) |
| 28 |
01736891
|
Lock Kit (#01736891) |
| 29 |
01923490
|
Sticker Le Mans grey (#01923490) |
| 29 |
01923491
|
DECAL LEMANS RED (#01923491) |
| 30 |
30970200
|
PLASTIC COVER A (#30970200) |
| 31 |
95100118
|
WASHER (#95100118) |
| 32 |
01948492
|
Rear fairing decal set (#01948492) |
| 33 |
01948592
|
Decal set, saddle cover (#01948592) |
| 33 |
01948593
|
Decal Set, Seat Cowl, Nc (#01948593) |
| 34 |
01923366
|
Decal set (#01923366) |
| 34 |
01923367
|
Decal set (#01923367) |
| 35 |
01948493
|
Rear fairing decal set (#01948493) |
