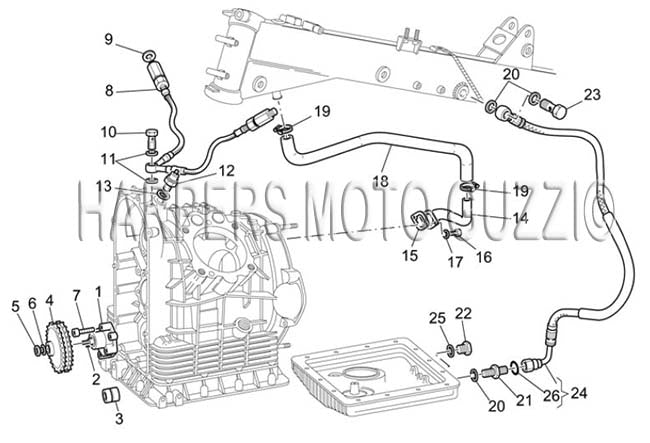

2003 2004 V 11 1100 Supply Oil Pump
| Position | Part Number | Description |
|---|---|---|
| 1 | 30146400 | HIGH VOLUME OIL PUMP HD (#30146400) |
| 2 | 13148300 | KEY SQUARE STOCK (#13148300) |
| 3 | 92252210 | BEARING (#92252210) |
| 4 | 30147700 | PUMP GEAR HD (#30147700) |
| 5 | 92602308 | NUT (#92602308) |
| 6 | 95120085 | WASHER (#95120085) |
| 7 | 98682430 | Screw (#98682430) |
| 8 | 01153602 | OIL FEED LINE (#01153602) |
| 9 | 25656102 | GASKET (#25656102) |
| 10 | 95990037 | BANJO BOLT (#95990037) |
| 11 | 12154200 | OIL LINE CRUSH WASHER (#12154200) |
| 12 | 17768750 | OIL SENDER (#17768750) |
| 13 | 12006400 | ALUM CRUSH WASHER (#12006400) |
| 14 | 01007200 | VENT PIPE A (#01007200) |
| 15 | 12007600 | OIL RETURN GASKET (#12007600) |
| 16 | 98084320 | Screw (#98084320) |
| 17 | 95120065 | WASHER (#95120065) |
| 18 | 30157400 | BREATHER HOSE (#30157400) |
| 19 | 93306018 | Clamp, 17x29x8 (#93306018) |
| 20 | 01154230 | GASKET (#01154230) |
| 21 | 01161331 | REDUCER (#01161331) |
| 22 | 95980216 | DRAIN PLUG (#95980216) |
| 23 | 95990084 | BANJO BOLT (#95990084) |
| 24 | 01154631 | HOSE (#01154631) |
| 25 | 10154200 | GASKET (#10154200) |
| 26 | 90706010 | O RING (#90706010) USE 899064 |
