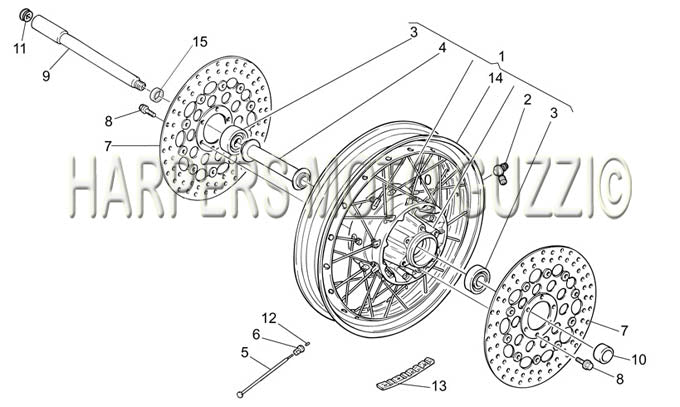

2003 2005 California EV PL Cat. 1100 Frame Front Wheel
| Position | Part Number | Description |
|---|---|---|
| - | ||
| - | ||
| - | 3616340 | #10 LH spacer (#3616340) |
| - | 92201821 | BEARING (#92201821) |
| 1 | 3610310 | Front wheel 2,50x18 inch (#3610310) |
| 2 | ||
| 3 | 92204220 | BEARING (#92204220) |
| 4 | 29615260 | SPACER (#29615260) |
| 5 | ||
| 6 | ||
| 7 | 31613383 | DISC (#31613383) |
| 8 | 3611445 | #08 Screw w/ flange M8x20 (#3611445) |
| 9 | 3614101 | #09 Front wheel spindle (#3614101) |
| 10 | 3616300 | #10 LH spacer (#3616300) |
| 11 | 93180111 | RUBBER PLUG (#93180111) |
| 12 | 98460404 | Theaded Dowel (#98460404) |
| 13 | 14616150 | WEIGHTS (#14616150) |
| 14 | ||
| 15 | 3615640 | #16 Spacer (#3615640) |
