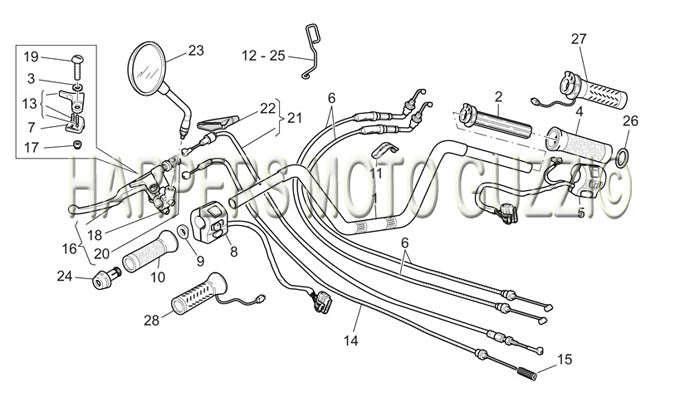

2003 2005 California EV PL Cat. 1100 Frame Handlebar Controls
| Position | Part Number | Description |
|---|---|---|
| - | 3738846 | RH lights selector (#3738846) USE 03738846 |
| 1 | 3600311 | Handlebar (#3600311) |
| 2 | 3603860 | Throttle (3603860) use 03600345 (#3603860) |
| 3 | 27530594 | WASHER (#27530594) |
| 4 | 3603560 | #04 RH hand grip (#3603560) |
| 5 | ||
| 6 | ||
| 7 | 27530595 | PLATE A (#27530595) |
| 8 | ||
| 9 | 3604245 | #09 Bush (#3604245) |
| 10 | 3603060 | #10 LH hand grip (#3603060) |
| 11 | 1609630 | #11 Hose clamp L46 mm (#1609630) |
| 12 | 3669000 | #26 RH eyelet for trans.guide (#3669000) |
| 13 | 27135215 | CHOKE LEVER (#27135215) Use 00H00902661 |
| 14 | ||
| 15 | 94321070 | SPRING (#94321070) |
| 16 | 3605545 | Clutch lever (#3605545) USE 03605545 |
| 17 | 92602206 | NUT (#92602206) USE STHN6MM |
| 18 | 30601060 | BRACKET (#30601060) USE AP 8118349 |
| 19 | 27604315 | PIVOT SCREW (#27604315) |
| 20 | 30602500 | ADJUSTER ASSY (#30602500)USE AP8118348 |
| 21 | ||
| 22 | 27663815 | CABLE BOOT (#27663815) |
| 23 | ||
| 24 | 3602760 | Balancing (#3602760) USE 03602760 |
| 25 | 3669001 | #27 LH eyelet for trans.guide (#3669001) |
| 26 | 29606970 | WASHER (PAIR) (#29606970) |
| 27 | ||
| 28 |
