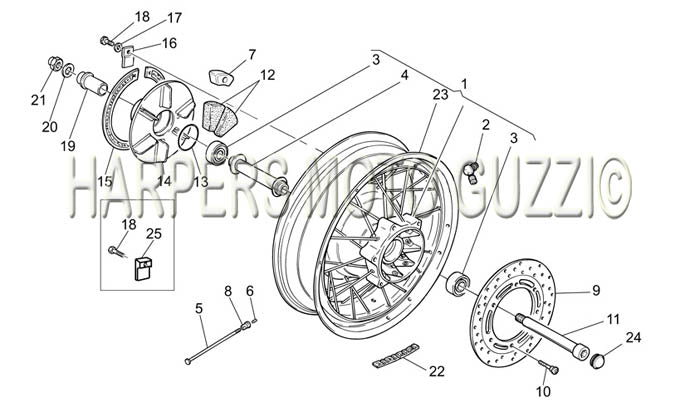

2003 2005 California EV PL Cat. 1100 Rear Wheel
| Position | Part Number | Description |
|---|---|---|
| 1 | 03630610 | REAR WHEEL ASSY (#03630610) |
| 1 | 03630670 | Rear Wheel Assy (#03630670) |
| 2 | 03617710 | Air Valve (#03617710) |
| 3 | 92204220 | BEARING (#92204220) |
| 4 | 03634010 | SPACER (#03634010) |
| 5 | 03631411 | Spoke, Rear Wheel (#03631411) |
| 6 | 98460404 | Theaded Dowel (#98460404) |
| 7 | 03636110 | FLEX CPL SUPPORT (#03636110) |
| 8 | 03611711 | Nipple (#03611711) |
| 9 | 03635701 | BRAKE ROTOR (#03635701) |
| 10 | 30611460 | ALLEN BOLT (#30611460) |
| 11 | 03633370 | AXLE - REAR (#03633370) |
| 12 | 03336810 | Rubber coupling, rear drive (#03336810) |
| 13 | 90706490 | O RING (#90706490) |
| 14 | 30335260 | DISC-CUSH DRIVE B (#30335260) |
| 15 | 14335303 | RING (#14335303) |
| 16 | 17335950 | LOCK PLATE (#17335950) |
| 17 | 03013800 | WAVE WASHER (#03013800) |
| 18 | 98084312 | BOLT, rear drive snap ring (#98084312) |
| 19 | 03634110 | SPACER REAR DRIVE (#03634110) |
| 20 | 95008219 | Washer (#95008219) |
| 21 | 92630719 | LOCK NUT (#92630719) |
| 22 | 14616150 | WEIGHTS (#14616150) |
| 23 | 03630710 | REAR RIM (#03630710) |
| 24 | 93180111 | RUBBER PLUG (#93180111) |
| 25 | 03632770 | PLATE (#03632770) |
