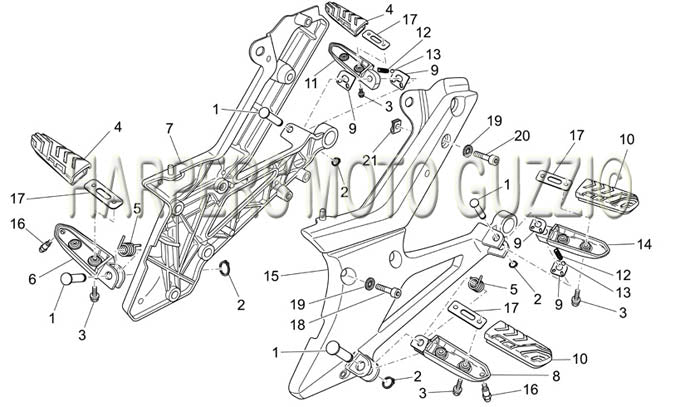

2003 2009 Breva ie 750 Frame Foot Rests
| Position | Part Number | Description |
|---|---|---|
| - | 32544510 | PLATE - BREVA - RH (#32544510) |
| - | 32544511 | PLATE - BREVA - LH (#32544511) |
| 1 | ||
| 2 | ||
| 3 | ||
| 4 | 32443210 | PEG RUBBER- BREVA (#32443210) |
| 5 | ||
| 6 | ||
| 7 | 977300 | RH plate (#977300) |
| 8 | ||
| 9 | ||
| 10 | 32443211 | Support Rubber Part - Breva (#32443211) |
| 11 | 32442310 | Rear Footrest RH - Breva (#32442310) |
| 12 | ||
| 13 | ||
| 14 | 32442710 | Rear Footrest LH - Breva (#32442710) |
| 15 | 977301 | LH plate (#977301) |
| 16 | ||
| 17 | 32441210 | Plate - Breva (#32441210) |
| 18 | 98682425 | Screw M8 X 25 (#98682425) |
| 19 | 14615901 | WASHER (#14615901) |
| 20 | 98680440 | Screw (#98680440) |
| 21 | 01576530 | Nut with Clip (#01576530) |
