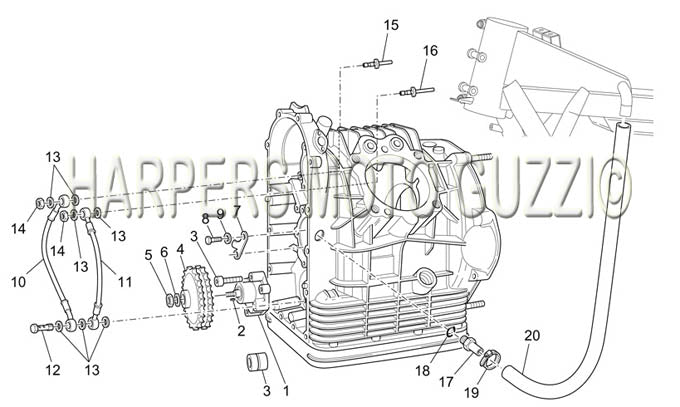

2004 2007 Mgs 01 Corsa 1200 Oil Pump
| Position | Part Number | Description |
|---|---|---|
| 1 | 30146400 | HIGH VOLUME OIL PUMP HD (#30146400) |
| 2 | 13148300 | KEY SQUARE STOCK (#13148300) |
| 3 | 98622430 | SCREW (#98622430) |
| 4 | 30147700 | PUMP GEAR HD (#30147700) |
| 5 | 95120085 | WASHER (#95120085) |
| 6 | 92602308 | NUT (#92602308) |
| 7 | 02165150 | Clamp (#02165150) |
| 8 | AP8152287 | Screw w/flange (#AP8152287) |
| 9 | 61270300 | WASHER (#61270300) |
| 10 | 02164750 | RH oil pipe (#02164750) |
| 11 | 02164850 | LH oil pipe (#02164850) |
| 12 | 95990036 | Bored screw M10X1-2holes (#95990036) |
| 13 | 30109330 | COPPER WASHER (#30109330) |
| 14 | 92690010 | Nut M10x1 (#92690010) |
| 15 | 02164950 | RH Nozzle (#02164950) |
| 16 | 02164951 | LH Nozzle (#02164951) |
| 17 | 02007250 | Union (#02007250) |
| 18 | 90706219 | O RING (#90706219) |
| 19 | 93306018 | Clamp, 17x29x8 (#93306018) |
| 20 | 02157450 | Breather pipe (#02157450) |
