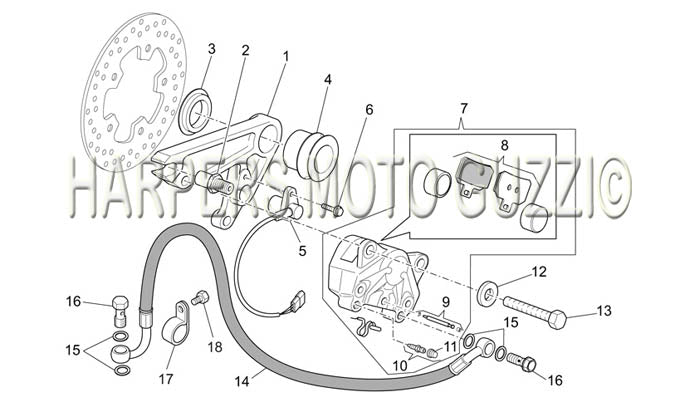

2004 2007 Mgs 01 Corsa 1200 Rear Brake Caliper
| Position | Part Number | Description |
|---|---|---|
| 1 | 02635850 | Brake hanger plate (#02635850) |
| 2 | AP8146388 | Brake supp. plate pin (#AP8146388) |
| 3 | 02633550 | Spacer 25,2x31x1,5 (#02633550) |
| 4 | 02636050 | Spacer (#02636050) |
| 5 | AP8124985 | Speedometer sensor cpl. (#AP8124985) |
| 6 | AP8152278 | #12 Screw w/ flange M6x16* (#AP8152278 ) |
| 7 | AP8113897 | Rear brake caliper (#AP8113897) |
| 8 | AP8113898 | Pads pair (#AP8113898) |
| 9 | AP8113752 | Pin+split pin (#AP8113752) |
| 10 | ||
| 11 | AP8113756 | Bleed valve cap 20 pc. (#AP8113756) |
| 12 | 61270300 | WASHER (#61270300) |
| 13 | 98084422 | Screw, 8mmx22mm (#98084422) |
| 14 | 02657550 | Rear brake hose (#02657550) |
| 15 | ||
| 16 | AP8133594 | Oil pipe screw (#AP8133594) |
| 17 | AP8134167 | Hose Clamp (#AP8134167) |
| 18 | AP8152272 | Screw w/flange (#AP8152272) |
