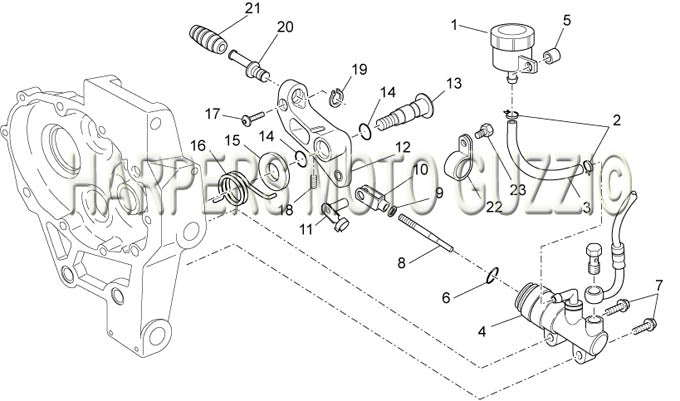

2004 2007 Mgs 01 Corsa 1200 Rear Master Cylinder
| Position | Part Number | Description |
|---|---|---|
| 1 | 01663530 | CLUTCH RESERVOIR (#01663530) |
| 2 | 61108500 | CLIP (#61108500) |
| 3 | 00823950050 | TUBE (#00823950050) |
| 4 | 02666950 | Rear master cylinder (#02666950) |
| 5 | AP8121032 | Bushing (#AP8121032) |
| 6 | AP8120178 | O-ring 112 (#AP8120178) |
| 7 | 98682325 | BOLT (#98682325) |
| 8 | 02675250 | Master cylinder rod (#02675250) |
| 9 | 92606206 | Nut (#92606206) |
| 10 | AP8101968 | Fork (#AP8101968) |
| 11 | AP8201301 | Gear Selector Fork Clips (#AP8201301) |
| 12 | 02677150 | Rear brake lever (#02677150) |
| 13 | 884033 | BRAKE LEVER PIN (884033) (#884033) |
| 14 | AP8144007 | O-Ring (#AP8144007) |
| 15 | 95008210 | Washer (#95008210) |
| 16 | 02678050 | Spring (#02678050) |
| 17 | 98350316 | BOLT (#98350316) |
| 18 | 98450210 | Dowel M5x10 (#98450210) |
| 19 | 90280009 | CLIP - T/LAMP (#90280009) |
| 20 | AP8121221 | BRAKE LEVER PIN (AP8121221) (#AP8121221) |
| 21 | AP8120912 | Lever rubber (#AP8120912) |
| 22 | AP8134167 | Hose Clamp (#AP8134167) |
| 23 | AP8152272 | Screw w/flange (#AP8152272) |
