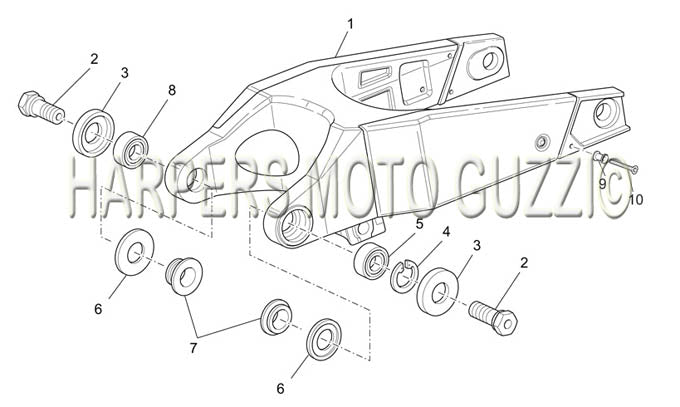

2004 2007 Mgs 01 Corsa 1200 Swing Arm
| Position | Part Number | Description |
|---|---|---|
| 1 | 02540250 | Swingarm (#02540250) |
| 2 | 02547060 | Rear swing arm pin (#02547060) |
| 3 | 90402547 | Gasket ring 25x47x7 (#90402547) |
| 4 | 90272047 | CIRCLIP (#90272047) |
| 5 | 92204220 | BEARING (#92204220) |
| 6 | 90402536 | Gasket ring 25x35x4 (#90402536) |
| 7 | 02547150 | Spacer (#02547150) |
| 8 | 92230220 | BEARING (#92230220) |
| 9 | AP8121890 | Rear stand bush (#AP8121890) |
| 10 | 98250630 | ALLEN BOLT (#98250630) |
