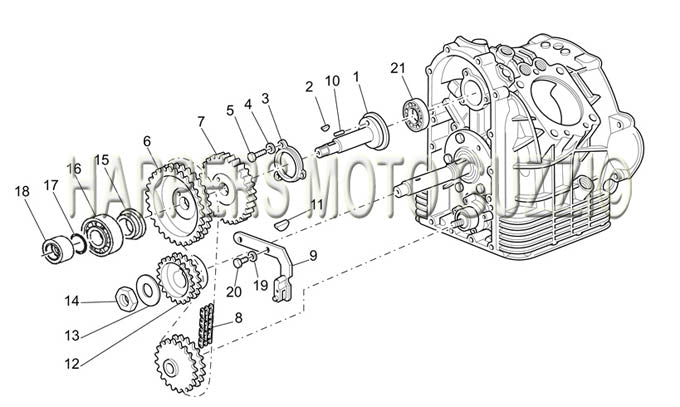

2004 2007 Mgs 01 Corsa 1200 Timing System II
| Position | Part Number | Description |
|---|---|---|
| 1 | 02052050 | Shaft (#02052050) |
| 2 | 91600565 | WOODRUFF KEY (#91600565) |
| 3 | 01054000 | CAM RETAINER (#01054000) |
| 4 | 95120065 | WASHER (#95120065) |
| 5 | 98054320 | BOLT (#98054320) |
| 6 | 01054500 | Drive Gear (#01054500) |
| 7 | 01051730 | Wheel Speed Sensor, Left Front (#01051730) |
| 8 | 28058060 | TIMING CHAIN (#28058060) USE 05058030 |
| 9 | 30057810 | CHAIN TENSIONER (#30057810) |
| 10 | 14234600 | PIN (#14234600) |
| 11 | 91702355 | WOODRUFF KEY (#91702355) |
| 12 | 14072001 | SPROCKET (#14072001) |
| 13 | 95100837 | WASHER (#95100837) |
| 14 | 92602525 | NUT (#92602525) |
| 15 | 30057700 | SPACER A (#30057700) |
| 16 | 92201220 | BEARING (#92201220) |
| 17 | 90706188 | O RING (#90706188) |
| 18 | 30057900 | SPACER A (#30057900) |
| 19 | 61270300 | WASHER (#61270300) |
| 20 | AP8152290 | Screw w/flange (#AP8152290) |
| 21 | 92201126 | ROLLER BEARING (#92201126) |
