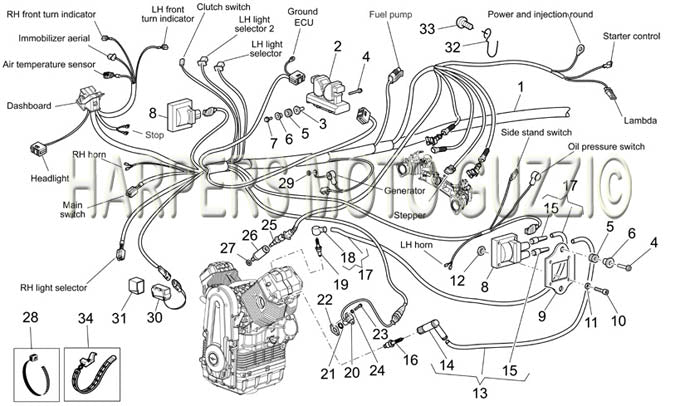

2005 2008 Griso V ie 1100 Electrical System I
| Position | Part Number | Description |
|---|---|---|
| 1 | 06747100 | CABLAGGIO PRINCIPALE GRISO 1100 (#06747100) |
| 1 | 978150 | Main wiring harness GRISO (#978150) |
| 2 | 06729500 | ECU (#06729500) |
| 3 | 05729230 | Bushing (#05729230) |
| 4 | AP8152279 | Screw w/flange (#AP8152279) |
| 5 | AP8120030 | Rubber Spacer (#AP8120030) |
| 6 | AP8221023 | T Bush* (#AP8221023) |
| 7 | AP8152282 | Screw w/ flange M6x3 (#AP8152282) |
| 8 | 05716530 | Ht Coil (#05716530) |
| 9 | 05716730 | Coil Holder (#05716730) |
| 10 | 98680125 | Screw (#98680125) |
| 11 | 95008204 | Washer (#95008204) |
| 12 | 92630104 | NUT (#92630104) |
| 13 | 06718300 | PLUG WIRE (#06718300) |
| 14 | 03717450 | SPARK PLUG CAP (#03717450) |
| 15 | 14717600 | SPARK PLUG RUBBER BOOT (#14717600) |
| 16 | 30717061 | SPARK PLUG BPR6ES (#30717061) |
| 17 | 06718301 | HOT WIRE FOR GRISO (#06718301) |
| 18 | 06717400 | Sparkplug cap (#06717400) |
| 19 | 05717030 | SPARK PLUG INNER (#05717030) |
| 20 | 01721600 | TIMING SENSOR (#01721600) |
| 21 | 90706141 | O RING (#90706141) USE 847180 |
| 22 | 01722700 | Gasket (#01722700) |
| 22 | 01722701 | SENSOR GSKT .4MM (#01722701) |
| 22 | 01722702 | SENSOR GSKT .6MM (#01722702) |
| 22 | 01722703 | SENSOR GSKT .8MM (#01722703) |
| 22 | 01722704 | SESOR GSKT 1.MM (#01722704) |
| 22 | 01722705 | SENSOR GSKT 1.5MM (#01722705) |
| 22 | 29722760 | SENSOR GASKET (#29722760) |
| 23 | 98682212 | Hex Socket Screw (#98682212) |
| 24 | 95008205 | Washer 5.3mm (#95008205) |
| 25 | 29729461 | OIL TEMP SENSOR (#29729461) |
| 26 | 03163330 | SENSOR HOLDER A (#03163330) |
| 27 | 95008210 | Washer (#95008210) |
| 28 | 14609650 | TIE WRAP (#14609650) |
| 28 | 49609601 | TIE STRAP (#49609601) |
| 28 | 93304390 | TIE WRAP (#93304390) |
| 29 | AP8152299 | Self-Locking Nut (#AP8152299) |
| 30 | AP8124266 | #14 Inclination sensor (#AP8124266 ) |
| 31 | AP8144046 | Fuel Tank Rubber (#AP8144046) |
| 32 | AP8121475 | Fairlead (#AP8121475) |
| 33 | AP8152285 | Screw w/ flange (#AP8152285) |
| 34 | 06609600 | HOSE CLAMP (#06609600) |
