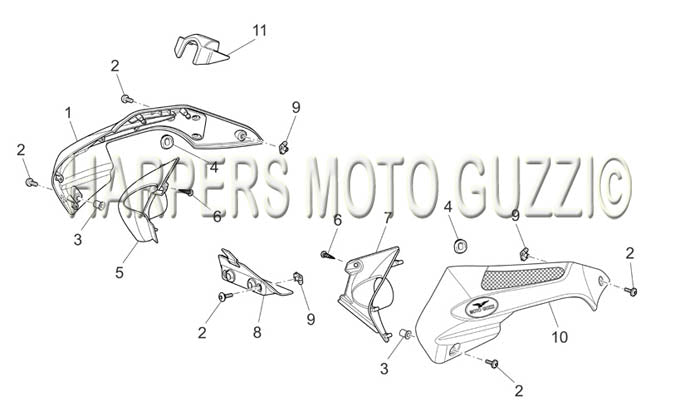

2006 2007 Griso V ie 850 Front Body Duct
| Position | Part Number | Description |
|---|---|---|
| 1 | 06570201 | CONVOGLIATORE DX NERO (#06570201) |
| 1 | 06570202 | CONVOGLIATORE DX ROSSO CORSA (#06570202) |
| 1 | 06570204 | RH air duct, yellow (#06570204) |
| 2 | AP8152302 | SCREW W/ FLANGE (#AP8152302) USE 2B014101 |
| 3 | 93231605 | FASTENER (#93231605) |
| 4 | AP8220162 | Rubber spacer (#AP8220162) |
| 5 | 06576800 | CHIUSURA ANT. DX CONVOGLIATORE (#06576800) |
| 6 | AP8150413 | Self-Tap Screw (#AP8150413) |
| 7 | 06576900 | CHIUSURA ANT. SX CONVOGLIATORE (#06576900) |
| 8 | 06729800 | PROTEZIONE CENTRALINA (#06729800) |
| 9 | AP8102375 | Clip (#AP8102375) |
| 10 | 06570301 | LH air duct, black (#06570301) |
| 10 | 06570302 | CONVOGLIATORE SX ROSSO CORSA (#06570302) |
| 10 | 06570304 | LH air duct, yellow (#06570304) |
| 11 | 06783600 | PROTEZIONE BLOCCASTERZO (#06783600) |
