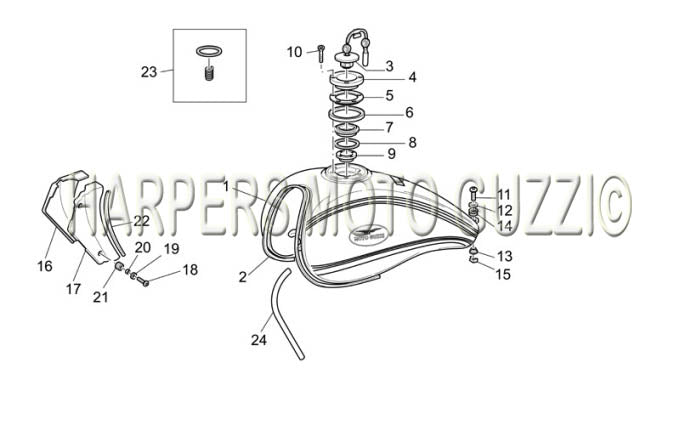

2006 2010 California Vintage 1100 Fuel Tank
| Position | Part Number | Description |
|---|---|---|
| 1 | 03100270 | FUEL TANK BLANK (#03100270) |
| 1 | 03100271 | FUEL TANK BLANK(#03100271) |
| 1 | 883168 | Fuel tank white (#883168) |
| 1 | 883175 | FUEL TANK (#883175) |
| 1 | 88404900YR3 | Fuel tank, red (#88404900YR3) |
| 1 | 88761200Z1 | Fuel tank (#88761200Z1) |
| 1 | 88780700Z1 | Fuel tank (#88780700Z1) |
| 1 | 977366 | Fuel tank, black (#977366) |
| 1 | ||
| 2 | 03106400 | MOULDING (#03106400) |
| 3 | 32103960 | TANK CAP - NEVADA W/KEYS (0310 3970) USE 887874 (#32103960) |
| 3 | 32103961 | Tank cap (#32103961) |
| 4 | 03101900 | GAS CAP FLANGE (#03101900) |
| 5 | 03103500 | SPACER (#03103500) |
| 6 | 03102400 | FLANGE GASKET (#03102400) |
| 7 | 03102200 | GAS CAP SEAT (#03102200) |
| 8 | 03101600 | GAS CAP GASKET (#03101600) |
| 9 | 03101720 | RESTRICTOR 38MM (#03101720) |
| 10 | 03103200 | SCREW A (#03103200) |
| 11 | 98350430 | Hex Socket Screw (#98350430) |
| 12 | 95100239 | WASHER (#95100239) |
| 13 | 31103565 | SPACER (#31103565) |
| 14 | 91551131 | GROMMET (#91551131) |
| 15 | 92660801 | CAGE NUT (#92660801) |
| 16 | 03472400 | COVER RH FRT B (#03472400) |
| 16 | 03472460 | RH Plate (#03472460) USE 034724605 |
| 17 | 03472900 | COVER LH FRT (#03472900) |
| 17 | 03472960 | LH Front Protect, Black (#03472960) |
| 18 | 98370619 | BOLT (#98370619) |
| 19 | 03462801 | Washer (#03462801) |
| 20 | 91180600 | SPACER (#91180600) |
| 21 | 91551081 | GROMMET (#91551081) |
| 22 | 00823931055 | GASKET (#00823931055) |
| 23 | 03104370 | #40 Tank cap ring and spring kit (#03104370) |
| 24 | 00823944050 | HOSE (#00823944050) |
