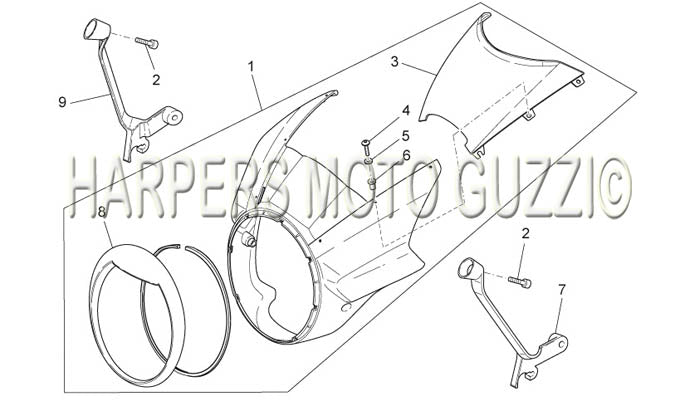

2008 2010 1200 Sport 8v 1200 Front Body I
| Position | Part Number | Description |
|---|---|---|
| 1 | 88697700Y01 | Windshield assy.red (#88697700Y01) |
| 1 | 97781800XE4 | Windshield assy. Silver (#97781800XE4) |
| 1 | 97781800Y02A | Windshield assy.black (#97781800Y02A) |
| 2 | 98692216 | Hex Socket Screw (#98692216) |
| 3 | 977749 | Fr.fairing lockup blank (#977749) |
| 3 | 97774900BM | Cover (#97774900BM) |
| 3 | 9778190087 | #03 Fr.fairing lockup white (#9778190087) |
| 4 | 98370412 | SCREW (#98370412) |
| 5 | AP8144565 | WASHER (#AP8144565) |
| 6 | 93231604 | WELL NUT (#93231604) |
| 7 | 977751 | FAIRING BRACKET 1200 SPORT (#977751) |
| 8 | 977750NA | Light frame, black (#977750NA) |
| 9 | 977752 | FAIRING BRACKET 1200 SPORT (#977752) |
