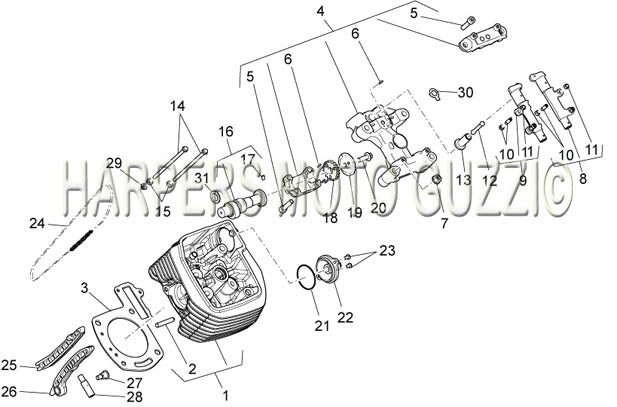

2008 2010 1200 Sport 8v 1200 Lh Cylinder Timing System
| Position | Part Number | Description |
|---|---|---|
| 1 | 872755 | #01 LH cylinder head (#872755) |
| 2 | 827018 | exhaust stud (#827018) |
| 3 | 874621 | Gasket (#874621) |
| 3 | 874622 | GASKET (#874622) |
| 3 | 976311 | CYLINDER HEAD GASKET (#976311) |
| 4 | 873425 | #04 LH.Rocker arm support (#873425) |
| 5 | 15792 | Screw (#15792) |
| 6 | 872759 | Dowel (#872759) |
| 7 | 825694 | NUT (#825694) |
| 8 | 976359 | ROCKER ASSY (#976359) |
| 8 | B013603 | Bilanciere aspirazione sx scarico dx (#B013603) |
| 9 | 976360 | ROCKER ASSY (#976360) |
| 9 | B013605 | Bilanciere aspirazione dx scarico sx (#B013605) |
| 10 | 873850 | SCREW TIP ASSEMBLY(#873850) |
| 10 | 879707 | SCREW TIP ASSY (#879707) |
| 11 | 484819 | NUT (#484819) |
| 11 | 879916 | LOW HEXAGONAL NUT (#879916) |
| 12 | 873631 | PUSH ROD ROCKER ARM (#873631) |
| 12 | B015681 | PUSH ROD ROCKER ARM (#B015681) |
| 13 | B014603 | TAPPET (FINISHED) (#B014603) USE B0146034 |
| 14 | 487444 | SCREW (#487444) |
| 15 | 976674 | Flat washer (#976674) |
| 16 | 875554 | #16 Camshaft (#875554) |
| 17 | 976589 | REFERENCE DOWELL (#976589) |
| 18 | 976350 | Ring Gear (#976350) |
| 19 | 874601 | SHEET OIL BREATHER (#874601) |
| 20 | 843060 | FLANGED HEXAGONAL HEAD SCREW (#843060) |
| 21 | 872814 | O RING 47.35 X 1.78 (#872814) |
| 22 | 874521 | TIMING SYSTEM COVER (#874521) |
| 23 | 98350210 | Screw (#98350210) |
| 24 | 976341 | TIMING CHAIN (#976341) |
| 25 | 976338 | Chain Guide Plate (#976338) |
| 26 | 976337 | MOBILE SLIDING SHOE (#976337) |
| 27 | 974228 | SPECIAL SCREW (#974228) |
| 28 | 873690 | CHAIN TENSIONER HYDRAULIC LH (#873690) use 1A027769 |
| 29 | 244585 | SPACER (#244585) |
| 30 | 874805 | SHEET (#874805) |
| 31 | CM162701 | CALIBRATED RING 1.02 (#CM162701) |
| 31 | CM162702 | CALIBRATED RING 1.05 (#CM162702) |
| 31 | CM162703 | CALIBRATED RING 1.08 (#CM162703) |
| 31 | CM162704 | CALIBRATED RING 1.11 (#CM162704) |
| 31 | CM162705 | CALIBRATED RING 1.11 (#CM162705) |
