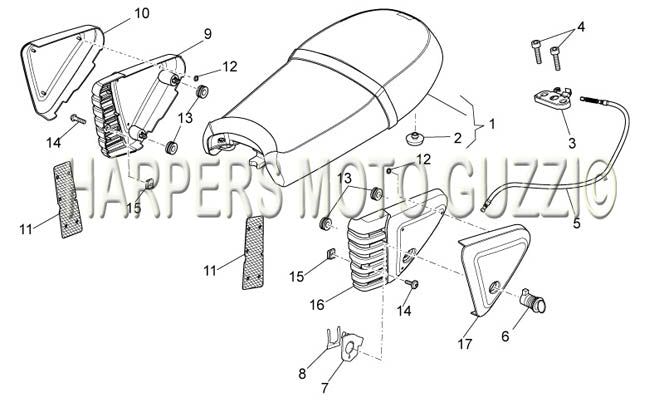

2008 2012 V7 Classic 750 Saddle Central Bod
| Position | Part Number | Description |
|---|---|---|
| 1 | 978931 | DUAL SEAT FOR V7 CAFE (#978931) |
| 2 | 32461610 | Rubber Spacer - Nevada (#32461610) |
| 3 | AP8102913 | Pass.saddle connecti (#AP8102913) |
| 4 | 98370625 | ALLEN SCREW (#98370625) USE STAB6X25 |
| 5 | 883295 | SADDLE TRASMISSION (#883295) |
| 6 | 977527 | SERRATURA BAULETTO (#977527) |
| 7 | AP8121420 | Fork Spring (#AP8121420) |
| 8 | 978415 | Plate (#978415) |
| 9 | 978941 | R.H. BODY SIDE (#978941) |
| 10 | 88702000XR7 | R.H. BODY SIDE (#88702000XR7) |
| 10 | 97894000BM | R.H. BODY SIDE (#97894000BM) |
| 10 | 97894000Y02 | R.H. BODY SIDE BLACK (#97894000Y02) |
| 11 | 978942 | R.H. BODY SIDE (#978942) |
| 12 | AP8150450 | Washer for Shafts (#AP8150450) |
| 13 | 91551086 | GROMMET (#91551086) |
| 14 | AP8152339 | SCREW W/FLANGE (#AP8152339) |
| 15 | AP8102375 | Clip (#AP8102375) |
| 16 | 978944 | L.H. BODY SIDE (#978944) |
| 17 | 88702100XR7 | LH side panel, red (#88702100XR7) |
| 17 | 97894300BM | L.H. BODY SIDE (#97894300BM) |
| 17 | 97894300Y02 | L.H. BODY SIDE BLACK (#97894300Y02) |
