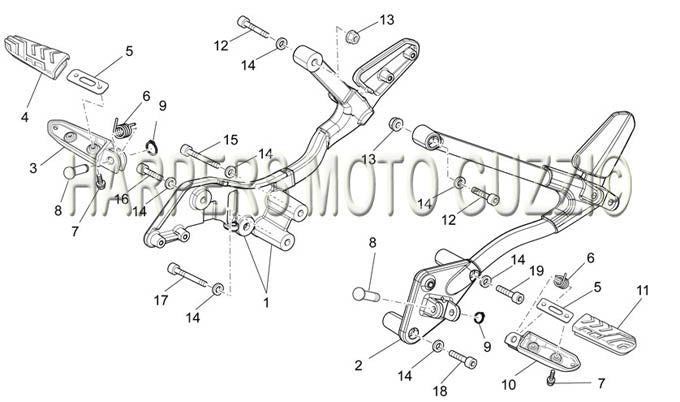

2008 Stelvio 1200 1200 Front Foot Rests
| Position | Part Number | Description |
|---|---|---|
| 1 | 883102 | RH FOOTREST BRACKET ASSY (#883102) |
| 2 | 883103 | LEFT FOOTREST BRACKET ASSY (#883103) |
| 3 | AP8145034 | FOOT PEG RH (#AP8145034) |
| 4 | 32443210 | PEG RUBBER- BREVA (#32443210) |
| 5 | 32441210 | Plate - Breva (#32441210) |
| 6 | AP8221277 | FOOT PEG SPRING (#AP8221277) |
| 7 | AP8152277 | Screw w/flange (#AP8152277) |
| 8 | AP8121567 | Pin (#AP8121567) |
| 9 | AP8152409 | STOP RING (#AP8152409) |
| 10 | ||
| 11 | 32443211 | Support Rubber Part - Breva (#32443211) |
| 12 | 98680435 | Screw (#98680435) |
| 13 | AP8152300 | Self-Locking Nut (#AP8152300) |
| 14 | 14615901 | WASHER (#14615901) |
| 15 | 98680480 | Screw, 8mmx80mm (#98680480) |
| 16 | 98682425 | Screw M8 X 25 (#98682425) |
| 17 | 98680465 | SCREW (#98680465) |
| 18 | 98680460 | Hex socket screw M8x60 (#98680460) |
| 19 | 98620485 | BOLT (#98620485) |
