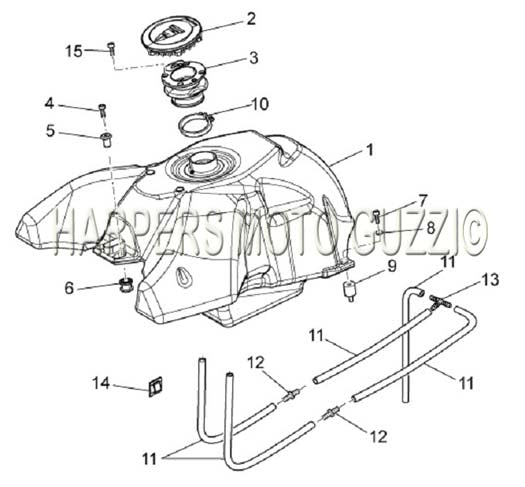

2009 2010 Stelvio 1200 NTX ABS 1200 Frame Fuel Tank
| Position | Part Number | Description |
|---|---|---|
| - | 883683 | Fuel tank (#883683) |
| - | 886233 | Fuel tank (#886233) |
| 1 | 883393 | FUEL TANK US (#883393) |
| 2 | 5103930 | #02 Tank cap (#5103930) |
| 3 | 978642 | BELLOWS (#978642) |
| 4 | 98680340 | Screw (#98680340) |
| 5 | ||
| 6 | ||
| 7 | ||
| 8 | 95100141 | WASHER (#95100141) |
| 9 | 93222023 | Silent - Block (#93222023) |
| 10 | 93306020 | Hose clamp (#93306020) |
| 11 | ||
| 12 | 6704700 | Joint (#6704700) |
| 13 | ||
| 14 | ||
| 15 | 98692216 | Hex Socket Screw (#98692216) |
| 16 | 883791 | METALLIC TUBE (#883791) |
| 17 | 95100125 | WASHER (#95100125) |
