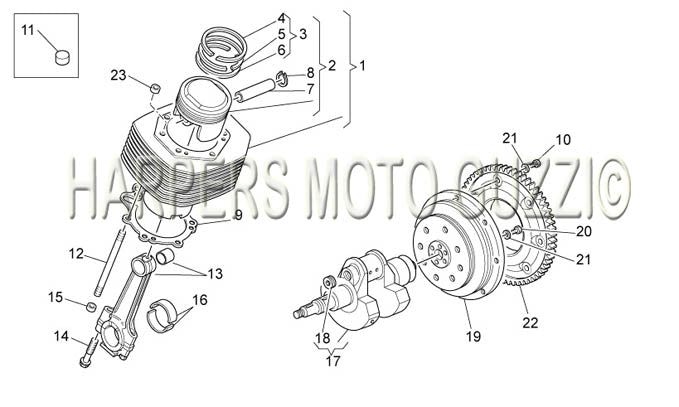

2009 2011 California Black Eagle 1100 Crankshaft Piston
| Position | Part Number | Description |
|---|---|---|
| 1 | 976196 | ASSIEME PISTONE/CILINDRO 1100 (#976196) |
| 2 | 05060230 | PISTON ASSY. Breva, California, Griso 1100 (#05060230) |
| 3 | 05060630 | PISTON RING SET (#05060630) |
| 4 | 05060730 | Piston Ring (#05060730) |
| 5 | 05060930 | Piston Ring (#05060930) |
| 6 | 05061030 | Piston Ring (#05061030) |
| 7 | 30061241 | WRIST PIN (#30061241) |
| 8 | 90351038 | CIRCLIP (#90351038) |
| 9 | 976064 | BASE GASKET (#976064) |
| 10 | 98084420 | BOLT (#98084420) |
| 11 | 05025330 | Rubber Spacer (#05025330) |
| 12 | 976031 | Stud bolt (#976031) |
| 13 | 976003 | CON ROD (#976003) |
| 14 | 849131 | CONROD SCREW (#849131) |
| 15 | 825597 | Nozzle for carter (#825597) |
| 16 | 976171 | Bearing, Half (#976171) |
| 16 | 976172 | Bearing, Half (#976172) |
| 17 | 976188 | Crankshaft cpl. (#976188) |
| 18 | 37065405 | CRANK PLUG (#37065405) |
| 19 | 03067030 | FLYWHEEL D (#03067030) |
| 20 | 12067701 | SCREW (#12067701) use 597150 |
| 21 | 14615901 | WASHER (#14615901) |
| 22 | 17067900 | RING GEAR (#17067900) |
