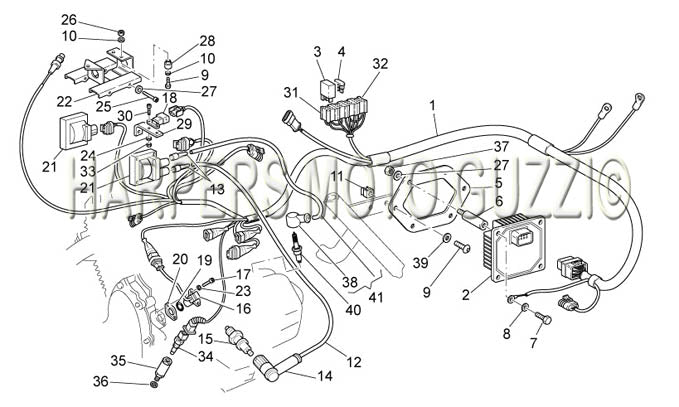

2009 2011 California Black Eagle 1100 Electrical System II
| Position | Part Number | Description |
|---|---|---|
| 1 | 03725875 | HARNESS-FI (#03725875) |
| 2 | 977235 | CDI unit assy (#977235) |
| 3 | 01732530 | USE 01732560 RELAY (#01732530) |
| 4 | 28742558 | Fuse, 5A (#28742558) |
| 4 | 28742559 | FUSE 10A (#28742559) |
| 5 | 03729230 | MOUNTING PLATE (#03729230) |
| 6 | 93221330 | RUBBER MOUNT (#93221330) |
| 7 | 98084110 | Hex screw M4X10 (#98084110) |
| 8 | 95008304 | Washer (#95008304) |
| 9 | 98682310 | Screw (#98682310) |
| 10 | 95008306 | WASHER (#95008306) |
| 11 | 92660601 | CAGE NUT (#92660601) |
| 12 | 03718350 | PLUG WIRE (#03718350) |
| 13 | 14717600 | SPARK PLUG RUBBER BOOT (#14717600) |
| 14 | 03717450 | SPARK PLUG CAP (#03717450) |
| 15 | 30717061 | SPARK PLUG BPR6ES (#30717061) |
| 16 | 01721600 | TIMING SENSOR (#01721600) |
| 17 | 98682212 | Hex Socket Screw (#98682212) |
| 18 | 30729330 | AIR TEMP SENSOR (#30729330) |
| 19 | 90706141 | O RING (#90706141) USE 847180 |
| 20 | 01722700 | Gasket (#01722700) |
| 20 | 01722701 | SENSOR GSKT .4MM (#01722701) |
| 20 | 01722702 | SENSOR GSKT .6MM (#01722702) |
| 20 | 01722703 | SENSOR GSKT .8MM (#01722703) |
| 20 | 01722704 | SESOR GSKT 1.MM (#01722704) |
| 20 | 01722705 | SENSOR GSKT 1.5MM (#01722705) |
| 20 | 29722760 | SENSOR GASKET (#29722760) |
| 21 | 05716530 | Ht Coil (#05716530) |
| 22 | 03716770 | Coil holder (#03716770) |
| 23 | 95008205 | Washer 5.3mm (#95008205) |
| 24 | 95120033 | Washer (#95120033) |
| 25 | 98682125 | Screw (#98682125) |
| 26 | 92606206 | Nut (#92606206) |
| 27 | 95021204 | Washer (#95021204) |
| 28 | 93222023 | Silent - Block (#93222023) |
| 29 | 30728230 | BRACKET A (#30728230) |
| 30 | 98680110 | Screw (#98680110) |
| 31 | 30732200 | FUSE HOLDER (#30732200) |
| 32 | 30732400 | RELAY HOLDER (#30732400) |
| 33 | 92606003 | Nut M3 (#92606003) |
| 34 | 29729461 | OIL TEMP SENSOR (#29729461) |
| 35 | 03163330 | SENSOR HOLDER A (#03163330) |
| 36 | 95008210 | Washer (#95008210) |
| 37 | 92630204 | Nut (#92630204) |
| 38 | 06717400 | Sparkplug cap (#06717400) |
| 39 | 03013800 | WAVE WASHER (#03013800) |
| 40 | 05717030 | SPARK PLUG INNER (#05717030) |
| 41 | 977388 | HT wire (#977388) |
