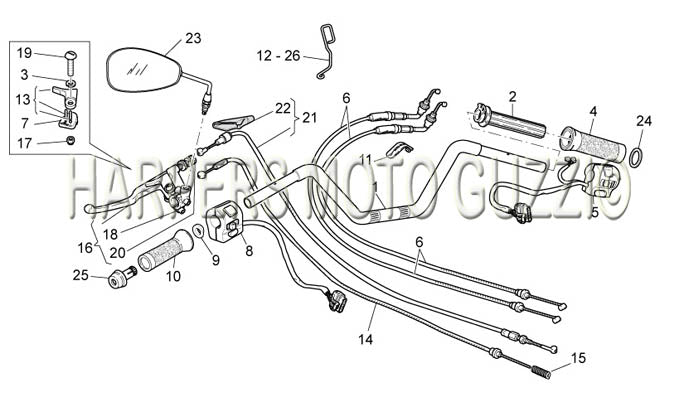

2009 2011 California Black Eagle 1100 Handlebar Controls
| Position | Part Number | Description |
|---|---|---|
| 1 | 03600360 | HANDLEBAR (#03600360) |
| 2 | 03603860 | THROTTLE (#03603860) |
| 3 | 27530594 | WASHER (#27530594) |
| 4 | 03603560 | RH GRIP (#03603560) |
| 5 | 977255 | RH SWITCH (#977255) |
| 6 | 03117545 | THROTTLE CABLE (#03117545) |
| 7 | 27530595 | PLATE A (#27530595) |
| 8 | 03738045 | SWITCH LEFT EV/STONE/SPECIAL (#03738045) |
| 9 | 03604245 | BUSHING, CLUTCH LEVER (#03604245) |
| 10 | 03603060 | LH GRIP (#03603060) |
| 11 | 01609630 | Clamp (#01609630) |
| 12 | 03669000 | CABLE GUIDE (#03669000) |
| 13 | 27135215 | CHOKE LEVER (#27135215) Use 00H00902661 |
| 14 | 03132845 | CHOKE CABLE (#03132845) |
| 15 | 94321070 | SPRING (#94321070) |
| 16 | 03605545 | CLUTCH LEVER ASSY (#03605545) |
| 17 | 92602206 | NUT (#92602206) USE STHN6MM |
| 18 | 30601060 | BRACKET (#30601060) USE AP 8118349 |
| 19 | 30530528 | PIVOT SCREW A (#30530528) |
| 20 | 30602500 | ADJUSTER ASSY (#30602500)USE AP8118348 |
| 21 | 03093070 | Clutch Cable (#03093070) |
| 22 | 27663815 | CABLE BOOT (#27663815) |
| 23 | 883802 | GRISO MIRROR LH/RH (#883802) USE 978570 |
| 23 | 978570 | MIRROR (#978570) |
| 24 | 29606970 | WASHER (PAIR) (#29606970) |
| 25 | 03602760 | BAR END WEIGHT ASSY (#03602760) |
| 26 | 03669001 | CABLE GUIDE LH (#03669001) |
