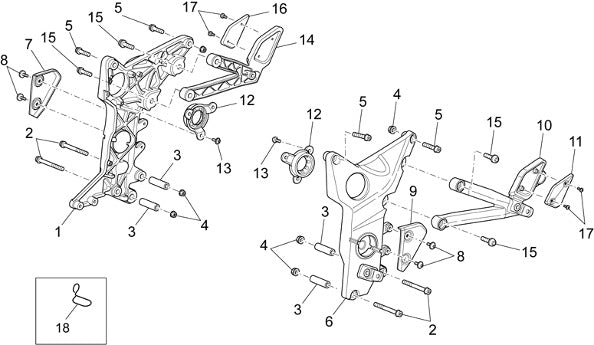

2009 2013 Griso 1200 8v E3 2007 2013 Griso S.E. E3 Frame Foot Rests II
| Position | Part Number | Description |
|---|---|---|
| 1 | 977052 | RH PLATE (#977052) |
| 2 | 98700475 | Screw M8x75 (#98700475) |
| 3 | ||
| 4 | ||
| 5 | 98700430 | BOLT FOR UPPER U BOLT GRISO 850/1100 (#98700430) |
| 6 | 977053 | LH plate (#977053) |
| 7 | ||
| 8 | 98710215 | SCREW (#98710215) |
| 9 | ||
| 10 | ||
| 11 | ||
| 12 | 5446431 | #09 Ring (#5446431) |
| 13 | 98350210 | Screw (#98350210) |
| 14 | ||
| 15 | 98700530 | VITE TCC IX M10X30 (#98700530) |
| 16 | ||
| 17 | 98370412 | SCREW (#98370412) |
| 18 |
