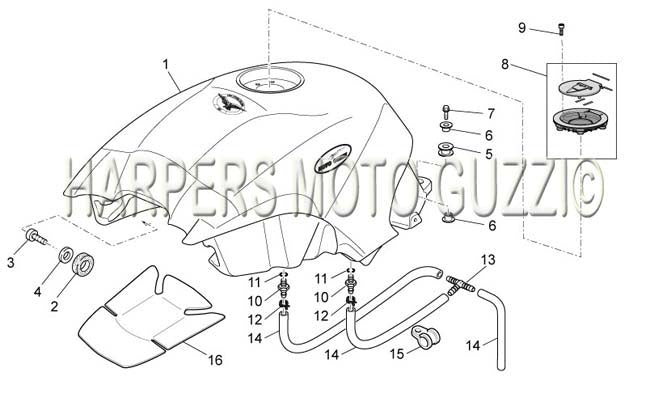

2010 2013 Norge 1200 ie 8v Frame Fuel Tank
| Position | Part Number | Description |
|---|---|---|
| - | ||
| - | ||
| - | ||
| - | 05100235 | SERBATOIO BENZINA GREZZO USA (#05100235) |
| - | ||
| - | ||
| 1 | 05100230 | Fuel Tank Blank (#05100230) |
| 2 | ||
| 3 | 98682414 | Hex Socket Screw (#98682414) |
| 4 | 95008208 | WASHER (#95008208) |
| 5 | 02107100 | TANK GROMMET (#02107100) |
| 6 | ||
| 7 | ||
| 8 | 05103930 | Tank Cap (#05103930) |
| 9 | ||
| 10 | 30103730 | UNION (#30103730) |
| 11 | ||
| 12 | ||
| 13 | ||
| 14 | 896544 | CONNECTING PIPE (#896544) |
| 15 | ||
| 16 | 05102930 | Fuel Tank Central Insulation (#05102930) |
