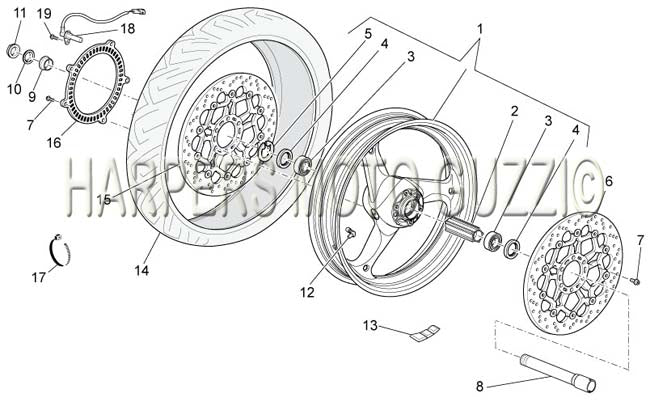

2010 2013 Norge 1200 ie 8v Front Wheel
| Position | Part Number | Description |
|---|---|---|
| 1 | 05610530 | RUOTA ANT COMPLETA (#05610530) |
| 1 | 883883 | NORGE WHEEL RIM (883883) (#883883) |
| 2 | 05615230 | Spacer (#05615230) |
| 3 | AP8125777 | Bearing 6005-2rs1 (#AP8125777) |
| 4 | AP8125773 | Gasket ring 30x47x7 (#AP8125773) |
| 5 | AP8125779 | Circlip (#AP8125779) |
| 6 | 896012 | LH front brake disc (#896012) USE B044280 |
| 7 | AP8152286 | SCREW W/FLANGE (#AP8152286) |
| 8 | 05614130 | Front Wheel Spindle (#05614130) |
| 9 | AP8125791 | Front wheel spacer (#AP8125791) |
| 10 | 95005325 | Washer, Front Axle (#95005325) |
| 11 | 01612190 | Nut, Front Axle (#01612190) USE AP8152335 |
| 12 | 03617710 | Air Valve (#03617710) |
| 13 | 14616150 | WEIGHTS (#14616150) |
| 14 | 895033 | Front tyre 120/70 ZR 17 inch (#895033) |
| 15 | 896011 | RH front brake disc (#896011) |
| 16 | AP8128189 | encoder (#AP8128189) |
| 17 | 49609601 | TIE STRAP (#49609601) |
| 18 | AP8127469 | Sensor abs (#AP8127469) |
| 19 | 598839 | SCREW (#598839) |
